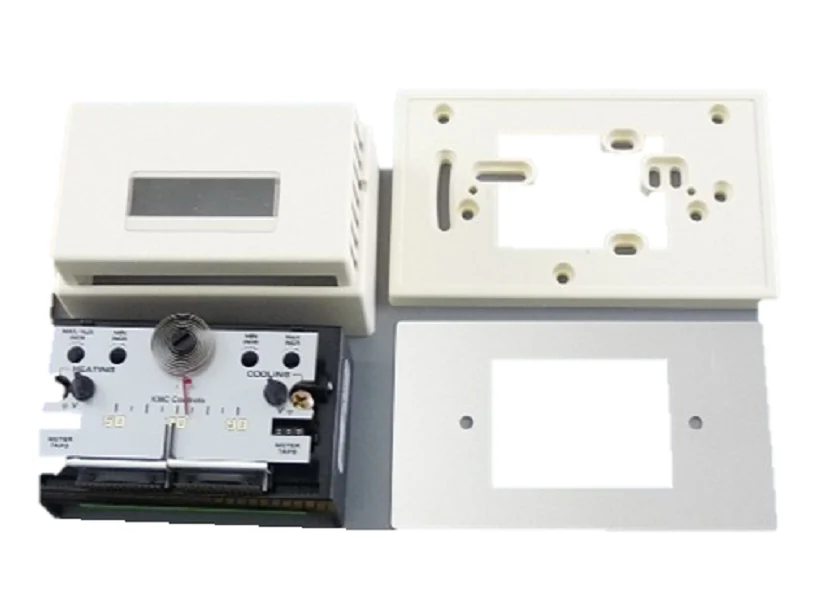

Titus HVAC 10269603 Thermostat
The Titus HVAC 10269603 Thermostat is a specialized Analog ACO Electronic Thermostat engineered for precision control in VAV (Variable Air Volume) terminal unit applications. Designed to interface seamlessly with Titus TA1 and TA2 controllers, this 24 VAC analog device provides reliable pressure-independent air volume management. It features a dual-slider interface for distinct heating and cooling setpoints, allowing for efficient automatic changeover (ACO) or morning warm-up sequences. The 10269603 is specifically calibrated to support primary airflow volume monitoring via a DC voltage output at the meter taps, enabling technicians to troubleshoot and balance systems without disconnecting the terminal. Utilizing a duct-mounted thermistor for supply air temperature sensing, this Titus OEM replacement part ensures accurate thermal regulation and minimizes unnecessary damper cycling. Whether you are maintaining a series fan-powered box or a standard single-duct unit, this thermostat provides the consistent voltage signal required for long-term HVAC system performance and occupant comfort.
Key Benefits- Precise VAV Integration: Fully compatible with Titus analog VAV controllers for pressure-independent damper modulation and steady airflow control.
- Streamlined Balancing: Features accessible meter taps for DC voltage readout of actual CFM, simplifying field calibration and system diagnostics.
- Dual-Setpoint Logic: Independent sliders for heating and cooling allow for fine-tuned deadband adjustments to prevent HVAC energy loss.
- Heavy-Duty Reliability: An OEM technical component designed for commercial environments, providing superior signal stability over generic alternatives.
Is the Titus 10269603 compatible with digital BACnet systems?
No, this is an analog electronic thermostat designed specifically for analog control sequences. For networking capabilities, a digital N-series or BACnet enabled controller would be required.
How do I calibrate the airflow limits on this model?
Airflow limit adjustments are performed using a digital DC voltmeter at the thermostat’s test ports. You must use the Titus calibration curve to correlate DC voltage to the specific CFM requirements of your terminal unit inlet size.
What power source does this thermostat require?
This unit operates on standard 24 VAC power provided by the VAV controller. Ensure the 16 VDC regulated supply from the controller is stable to prevent voltage "float" during calibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
