Titus HVAC 10156901 Relay

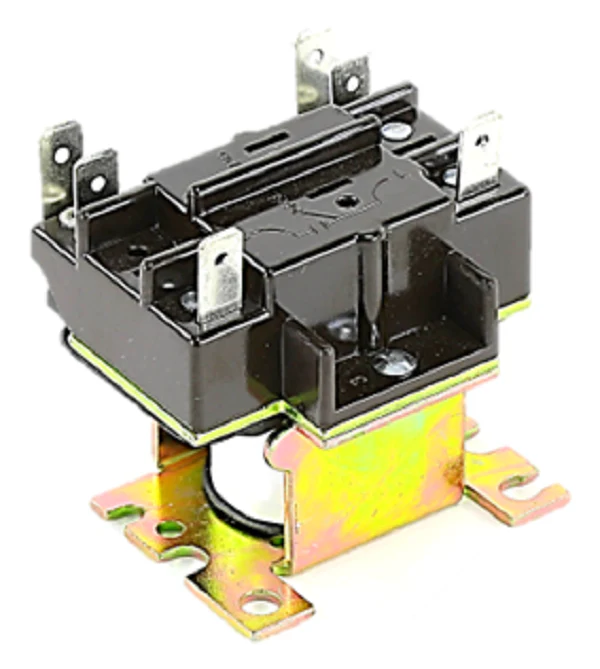

Integrate the Titus HVAC 10156901 Relay into your air handling unit or fan-powered terminal to ensure precise switching of line-voltage components via a 24VAC control circuit. This HVAC fan motor relay is a standard OEM replacement designed for high-cycle applications in VAV boxes and residential air handlers. Operating on a 24VAC coil, it allows thermostats or building automation systems to manage high-amperage fan loads safely. The compact DPDT relay configuration (where applicable) or standard contact arrangement provides a robust interface for multi-speed fan control and auxiliary equipment interlocking. For technicians servicing Titus fan-powered terminals, this part is essential for restoring airflow sequencing and protecting sensitive control boards from inductive kickback. The lightweight 0.36lb design ensures straightforward mounting within existing control enclosures, maintaining the efficiency of Terminal Unit air distribution systems while providing reliable switching for HVAC fans and heat stages.
Key Benefits
- Optimized Compatibility: Specifically engineered for Titus HVAC systems, ensuring exact fit and electrical alignment with fan-powered terminal units.
- Reliable 24VAC Logic: Features a low-voltage 24VAC coil that pairs seamlessly with standard digital thermostats and BAS controllers.
- Heavy-Duty Switching: Designed to handle high-frequency switching for fan motor operation without premature contact pitting or failure.
- Compact Footprint: Fits tight junction boxes and control panels, reducing labor time during maintenance or field upgrades.
- Versatile Application: Suitable for managing fan speeds, electric heater stages, and interlock circuits in commercial and residential settings.
Common Questions
Is the Titus 10156901 relay compatible with other 24V systems?
Yes, as long as the coil voltage is 24VAC and the contact ratings meet or exceed your equipment's draw, this relay can be integrated into various HVAC motor control circuits. Always verify the terminal labels against your wiring diagram for proper phasing.
Can this relay control a multi-speed blower motor?
This fan relay is typically used to energize specific speed taps or act as a primary pilot duty relay for a larger contactor. It is a standard component for fan speed control setups found in Titus VAV and fan-powered boxes.
What are the symptoms of a failing fan relay?
Common indicators include "chattering" from the control box, a fan that refuses to cycle on despite a 24VAC signal at the coil, or contacts sticking in the closed position, which keeps the blower running continuously.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
