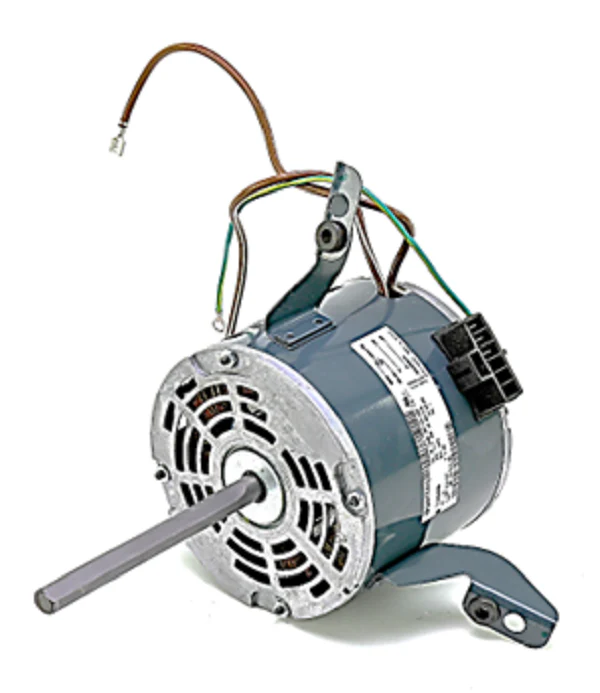

Titus HVAC 10151202 Motor

The Titus HVAC 10151202 Motor is a high-performance 1/3 HP OEM replacement motor engineered for precision airflow in commercial terminal units and fan-powered boxes. Operating at 277V and 1075 RPM, this single-phase, permanent split capacitor (PSC) motor is built with a 48Y frame to ensure a direct mechanical fit. Designed for specific Titus configurations, it features a counter-clockwise (CCW) rotation and a right-hand shaft orientation, making it a drop-in solution for contractors focused on restoring original system static pressure and CFM delivery. Its robust construction includes sealed bearings and thermal overload protection to handle the continuous duty cycles found in demanding HVACR environments. This 277V blower motor provides the electrical efficiency and high-torque performance required to maintain occupant comfort while minimizing vibration and mechanical wear across the drive assembly.

Key Benefits:

• Precise 277V Compatibility: Engineered specifically for high-voltage commercial electrical systems, reducing the need for step-down transformers.
• Optimized 1/3 HP Output: Rated at 1075 RPM to match factory specifications for consistent airflow and thermal regulation.
• Industrial-Grade Construction: Features a 48Y frame and durable housing designed for long-term reliability in plenum-rated spaces.
• CCW Rotation: Verified counter-clockwise rotation ensures compatibility with standard right-hand fan wheel configurations.
• Direct OEM Replacement: Eliminates site-work modifications by matching the mounting footprint and shaft dimensions of the original Titus 10151202 component.

Common Questions:

• Is the Titus 10151202 compatible with variable speed controllers? As a PSC motor, this unit is designed for single-speed operation or specific multi-speed taps as designated by the Titus wiring schematic. Use with external VFDs is not recommended unless specified by the manufacturer.
• What frame size does this motor use? This motor utilizes a 48Y frame, which is a standard for many Titus terminal unit blowers, ensuring the bolt pattern and shaft height align with the existing housing.
• Can this motor be reversed in the field? No, the rotation is fixed as CCW (Counter-Clockwise). Technicians must verify the rotation requirement of the fan wheel before installation.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
