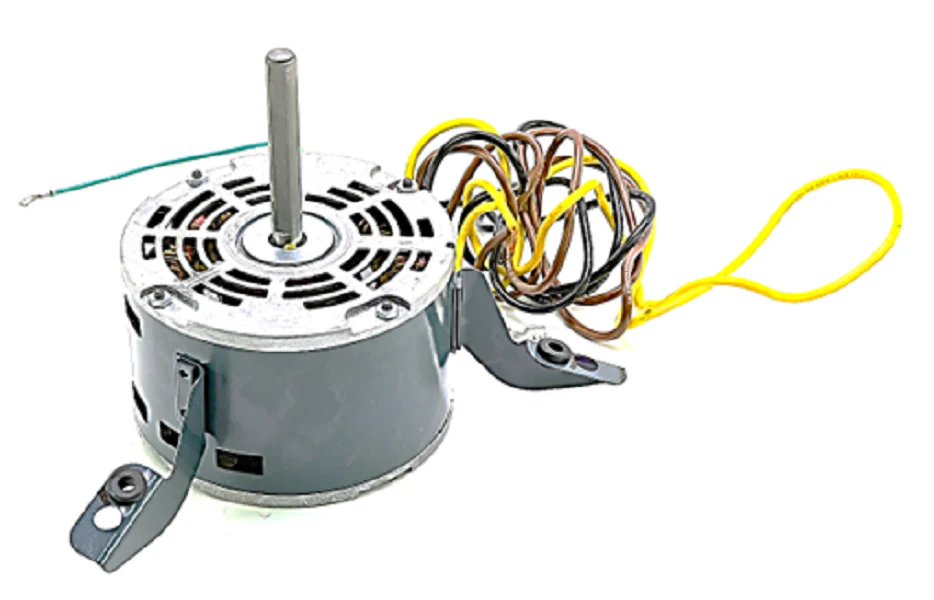

Titus HVAC 10096701 Motor
Engineered for high-performance terminal units and fan-powered VAV boxes, the Titus HVAC 10096701 Motor is a critical OEM replacement component for commercial air distribution systems. This 1/6HP 277V CCW Motor provides the necessary torque for precise airflow control in demanding environments. Featuring a Permanent Split Capacitor design, this direct drive blower motor operates with a dedicated Counter-Clockwise (CCW) rotation and a Right-Hand (RH) orientation, ensuring seamless integration with existing fan assemblies. As a technician-grade HVAC replacement motor, the 10096701 is built to industrial standards to maintain system static pressure and optimize indoor air quality. Whether you are performing routine maintenance or a critical system overhaul, this single-phase, 0.8-amp motor delivers the reliability required to minimize downtime and preserve energy efficiency across Titus terminal unit configurations.
Key Benefits- OEM Compatibility: Specifically designed as a drop-in replacement for Titus fan-powered terminal units, ensuring correct shaft alignment and mounting.
- Voltage Specific: Optimized for 277V single-phase electrical systems common in commercial industrial HVAC infrastructures.
- Reliable Performance: The Permanent Split Capacitor (PSC) design facilitates a smooth startup and consistent operation under variable load conditions.
- Rugged Construction: Built to withstand the thermal and mechanical stresses of continuous-duty air handling applications.
What is the correct rotation and orientation for this motor?
The 10096701 is a Counter-Clockwise (CCW) Lead End motor with a Right-Hand (RH) orientation. Always verify the rotation of your existing blower wheel before installation to ensure proper airflow direction.
Can this motor be used in 120V or 208-230V applications?
No, this motor is specifically wound for 277V AC operation. Utilizing a different voltage will cause immediate component failure and poses a safety risk to the electrical system.
Is this a direct drive or belt drive motor?
This is a direct drive motor typically utilized in Titus VAV boxes where the fan wheel attaches directly to the motor shaft, reducing mechanical complexity and maintenance requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
