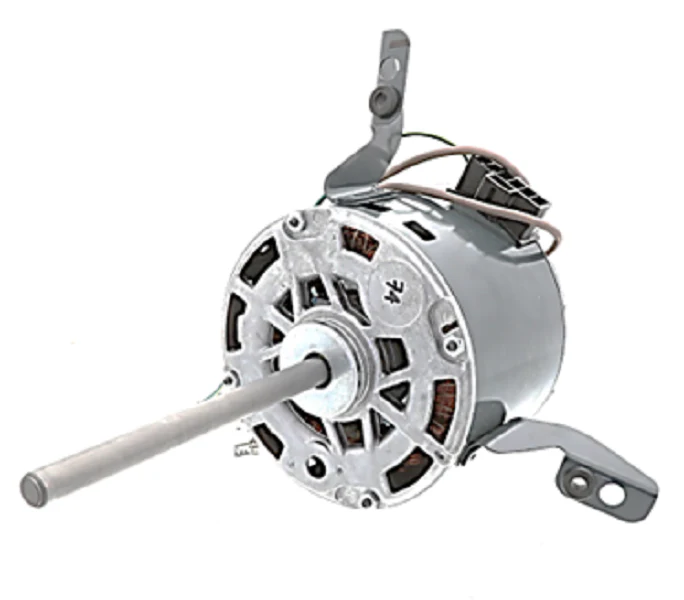

Titus HVAC 10056902 Motor
The Titus HVAC 10056902 is a high-performance 1/4 HP blower motor specifically engineered for Titus fan powered terminal units and VAV boxes. Operating at 1075 RPM, this permanent split capacitor (PSC) motor provides the reliable torque required to maintain consistent static pressure in residential and light commercial air handling applications. Designed for a 208-230V single-phase power supply, it features a NEMA 48 frame and thermal protection to prevent terminal failure during continuous duty cycles. As an OEM replacement motor, the 10056902 ensures a precise match for the original fan wheel assembly, maintaining the unit's AHRI certification and acoustic ratings. Its robust steel construction and energy-efficient design make it the preferred choice for service contractors looking to restore factory-spec airflow and efficiency to Titus terminal units.
Key Benefits- Precise OEM Compatibility: Direct replacement for Titus 10056902, ensuring drop-in installation without the need for mounting modifications or bracket adjustments.
- Optimized Airflow Regulation: Maintains a 1075 RPM speed constant for stable Cubic Feet per Minute (CFM) delivery across varying duct pressures.
- Durable PSC Design: Built for high-static applications, offering superior heat dissipation and longer service life compared to generic alternatives.
- Integrated Thermal Protection: Features internal automatic reset thermal overload protection to safeguard the windings against overheating and voltage spikes.
Is the 10056902 a reversible motor?
This motor is typically factory-configured for the specific rotation required by Titus fan terminals. Always verify the rotation arrow on the motor casing against your existing blower wheel before final wiring.
Can I use this motor with a variable speed controller?
Yes, as a 1075 RPM PSC motor, it is compatible with most SCR (Silicon Controlled Rectifier) fan speed controls commonly found in Titus VAV systems for fine-tuning airflow.
What capacitor is required for this motor?
This motor requires a run capacitor (typically 5 MFD/370V) for proper phase shifting and torque. Check the motor nameplate for the specific microfarad rating required for your unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Titus HVAC 10056902 Motor
The Titus HVAC 10056902 is a high-performance 1/4 HP blower motor specifically engineered for Titus fan powered terminal units and VAV boxes. Operating at 1075 RPM, this permanent split capacitor (PSC) motor provides the reliable torque required to maintain consistent static pressure in residential and light commercial air handling applications. Designed for a 208-230V single-phase power supply, it features a NEMA 48 frame and thermal protection to prevent terminal failure during continuous duty cycles. As an OEM replacement motor, the 10056902 ensures a precise match for the original fan wheel assembly, maintaining the unit's AHRI certification and acoustic ratings. Its robust steel construction and energy-efficient design make it the preferred choice for service contractors looking to restore factory-spec airflow and efficiency to Titus terminal units.
Key Benefits- Precise OEM Compatibility: Direct replacement for Titus 10056902, ensuring drop-in installation without the need for mounting modifications or bracket adjustments.
- Optimized Airflow Regulation: Maintains a 1075 RPM speed constant for stable Cubic Feet per Minute (CFM) delivery across varying duct pressures.
- Durable PSC Design: Built for high-static applications, offering superior heat dissipation and longer service life compared to generic alternatives.
- Integrated Thermal Protection: Features internal automatic reset thermal overload protection to safeguard the windings against overheating and voltage spikes.
Is the 10056902 a reversible motor?
This motor is typically factory-configured for the specific rotation required by Titus fan terminals. Always verify the rotation arrow on the motor casing against your existing blower wheel before final wiring.
Can I use this motor with a variable speed controller?
Yes, as a 1075 RPM PSC motor, it is compatible with most SCR (Silicon Controlled Rectifier) fan speed controls commonly found in Titus VAV systems for fine-tuning airflow.
What capacitor is required for this motor?
This motor requires a run capacitor (typically 5 MFD/370V) for proper phase shifting and torque. Check the motor nameplate for the specific microfarad rating required for your unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
