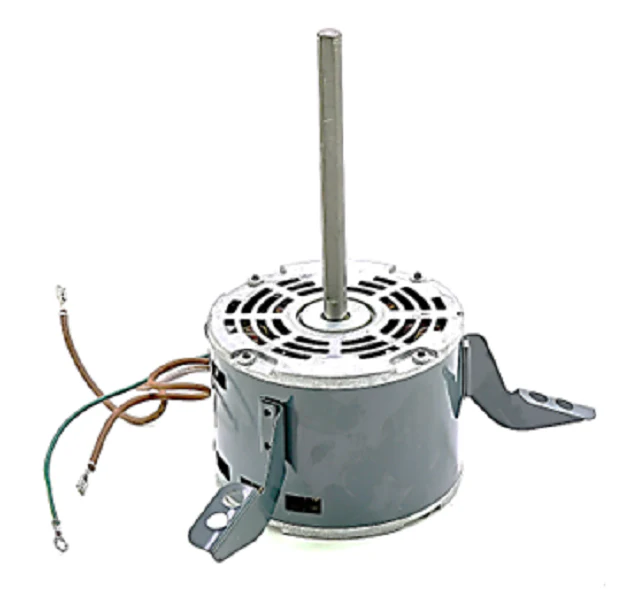

Titus HVAC 10051201 Motor
The Titus HVAC 10051201 motor is a precision-engineered 1/4 HP replacement blower motor designed for high-performance air handling and terminal unit applications. Operating on a 120V single-phase power supply, this 1075 RPM motor features a counter-clockwise (CCW) rotation (viewed from the lead end) to match specific Titus fan coil unit and VAV terminal configurations. Built with a durable 48-frame design and a rolled steel housing, it provides the thermal protection and mechanical reliability required for continuous-duty cycles in demanding commercial HVAC environments.
This permanent split capacitor (PSC) motor is optimized for efficiency, typically drawing 3.4 amps at full load. Its 18-inch shaft length ensures versatile mounting within various blower assemblies, allowing for direct-drive fan wheel integration. For contractors performing field service, the Titus 10051201 provides a seamless drop-in fit, maintaining the original equipment manufacturer (OEM) performance standards for static pressure and airflow delivery. Ensure a 5MFD 370V capacitor is utilized for correct startup and operational torque.
Key Benefits:- OEM Compatibility: Precision-matched for Titus HVAC terminal units and air handlers to ensure proper fitment and airflow.
- Enhanced Durability: Features a rolled steel frame and aluminum end-flanges for superior heat dissipation and corrosion resistance.
- Quiet Operation: Balanced internal rotor assembly minimizes vibration, critical for sound-sensitive VAV and fan-powered box installations.
- Thermal Protection: Internal overload protection prevents winding failure during restricted airflow conditions or voltage fluctuations.
- Extended Reach: Includes an 18-inch shaft to accommodate wide fan housings and specialized mounting brackets.
What is the correct rotation for the Titus 10051201?
This motor is a CCW (Counter-Clockwise) rotation when viewed from the lead end (CCWLE). Always verify the rotation of the existing fan wheel before installation to prevent reversed airflow.
Does this motor include the run capacitor?
No, the capacitor is sold separately. This 1/4 HP motor requires a 5 MFD / 370V run capacitor to operate within factory specifications.
Can this motor replace other 1/4 HP 120V blower motors?
While it shares standard 48-frame specifications, the 18-inch shaft length and specific CCW rotation are tailored for Titus equipment. Verify shaft diameter and mounting bolt patterns for non-Titus applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
