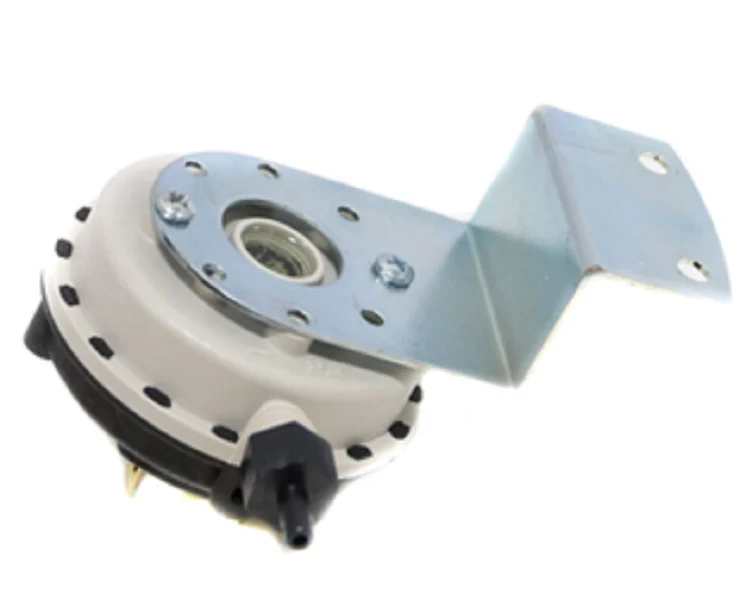

Texas Furnace(Consolidated Ind) 4026900 Pressure Switch
The Texas Furnace (Consolidated Ind) 4026900 Pressure Switch is an essential safety component specifically engineered for induced-draft furnace systems. This OEM replacement part is factory-calibrated to a .52" wc set point, ensuring precise monitoring of the negative pressure generated by the draft inducer motor. Designed with a Single Pole Double Throw (SPDT) configuration, this switch provides versatile wiring options (normally open or normally closed), allowing for seamless integration into various HVAC control circuits and air proving applications. Its rugged construction is built to withstand the thermal cycling and high-demand environments typical of residential and commercial heating systems.
For service technicians, the 4026900 pressure switch is a critical diagnostic point when troubleshooting furnace ignition failures or short-cycling issues. If the inducer motor runs but the burners fail to ignite, or if the system flashes a "pressure switch stuck open" error code, verifying the .52" wc threshold is the first step. This air pressure switch serves as the primary safeguard to confirm that combustion gases are being properly vented before the ignition sequence initiates. Ensuring a direct OEM cross-reference with your specific Texas Furnace or Consolidated Industries model maintains system integrity and complies with original engineering specifications.
Key Benefits for Contractors:
- OEM Precision: Factory-set at .52" wc for exact compatibility with Texas Furnace and Consolidated Ind heating units.
- Versatile Electrical Design: The SPDT switch configuration allows for flexible terminal connections, supporting a wide range of HVAC relays and control boards.
- System Reliability: Actively prevents the ignition sequence if inadequate venting or inducer motor failure is detected, protecting the heat exchanger from overheating.
- HVAC Optimization: High-sensitivity diaphragm ensures responsive switching, reducing error codes and unnecessary system lockouts during the heating season.
Common Questions:
Why is my furnace flashing a pressure switch error code?
This usually indicates the 4026900 switch is not sensing the required .52" wc vacuum. Check for blocked flue pipes, a failing inducer motor, cracked vacuum tubing, or a ruptured internal diaphragm within the switch itself.
Can I use a universal pressure switch instead of the 4026900?
While universal kits exist, using a dedicated OEM pressure switch is recommended to ensure the set point matches the manufacturer's airflow requirements exactly, preventing safety issues or intermittent startups.
How do I test the SPDT functionality?
Using a multimeter set to continuity, you can verify the path between the Common (C) terminal and the Normally Closed (NC) or Normally Open (NO) terminals while applying a calibrated vacuum to simulate furnace operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
