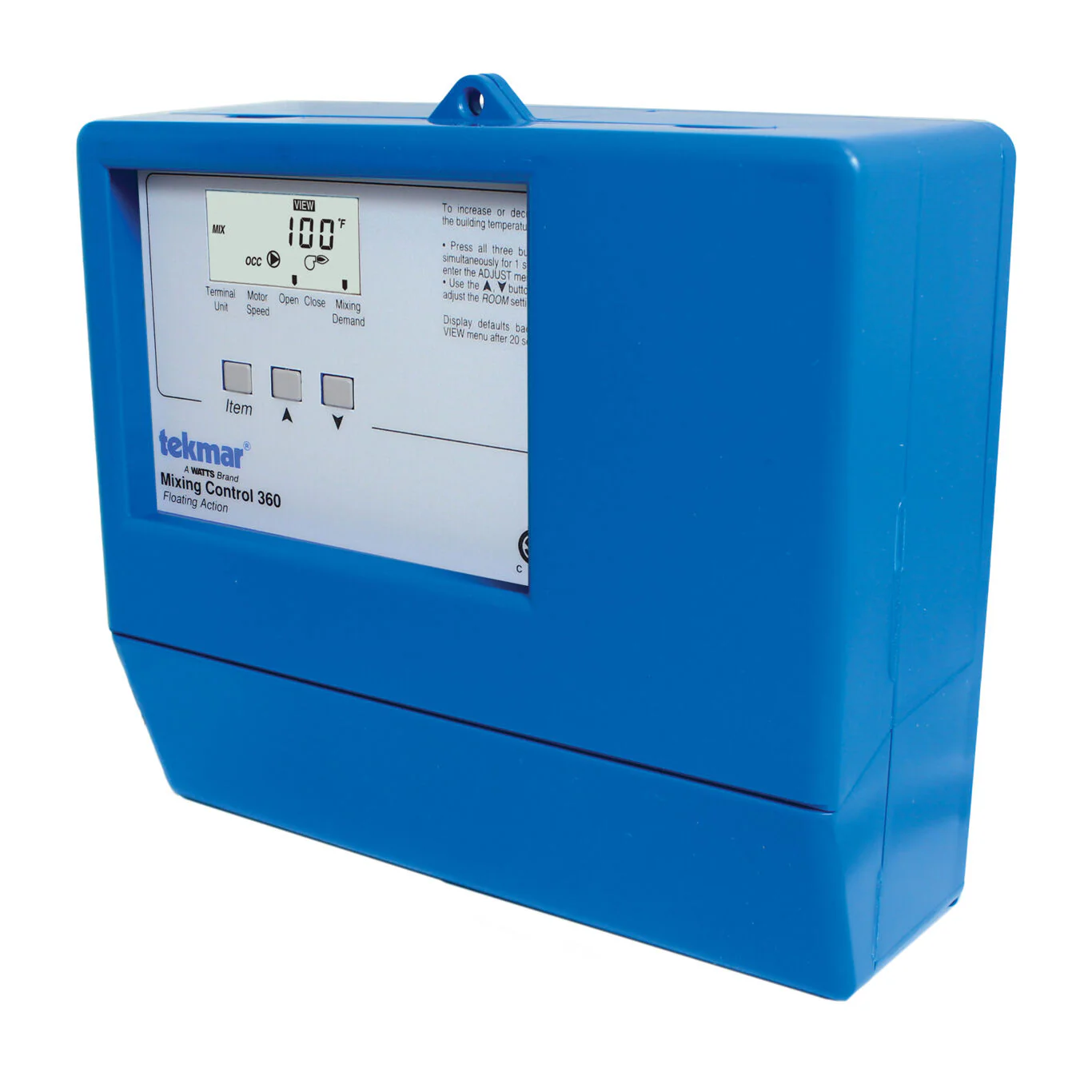

Tekmar Controls 360 Control
The Tekmar 360 Mixing Control is a dedicated 120Vac floating action mixing control designed to regulate water temperatures in hydronic heating systems. Engineered for precision, the unit operates a floating action actuator to manage a mixing valve, ensuring accurate outdoor reset logic based on ambient temperatures. This control is critical for maintaining stable supply water temperatures in radiant floor heating and high-mass boiler loops, preventing thermal shock and optimizing boiler efficiency. The 360 features an adjustable heating curve and specialized boiler protection settings to minimize condensation risks in non-condensing systems. Contractors utilize this control to integrate mixing valve automation into multi-load configurations where consistent temperature stratification is required. With built-in warm weather shut down (WWSD) and outdoor air temperature (OAT) sensors, the 360 provides a robust solution for primary-secondary piping arrangements and hydronic temperature regulation.
- Precise Floating Action Control: Delivers accurate 120V pulses to any compatible 3-way or 4-way mixing valve actuator.
- Dynamic Outdoor Reset: Automatically adjusts supply water setpoints based on external conditions to reduce energy consumption.
- Boiler Return Protection: Safeguards cast iron heat exchangers by maintaining minimum return temperatures to prevent flue gas condensation.
- Integrated Digital Display: Provides real-time monitoring of system temperatures, setpoints, and error codes for rapid diagnostics.
- Universal Compatibility: Interfaces seamlessly with standard 10k thermistors for supply, return, and outdoor sensing.
Common Questions
How do I set the heating curve on the Tekmar 360?
The heating curve is adjusted via the internal menu by setting the starting water temperature and the design outdoor temperature. This ensures the mixing valve control provides the exact BTU load required for the specific heat loss of the building.
Can the Tekmar 360 be used with a 24V actuator?
No, this specific model provides 120Vac floating action output. For 24V applications, an isolating relay or a dedicated 24V mixing control is required to prevent component damage.
Does this control require an outdoor sensor to function?
While the control can operate at a fixed setpoint, utilizing the outdoor air sensor is highly recommended to enable the outdoor reset functionality, which significantly improves system performance and comfort.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $679.15
-65%$679.15
$237.70Tekmar Controls 360 Control
The Tekmar 360 Mixing Control is a dedicated 120Vac floating action mixing control designed to regulate water temperatures in hydronic heating systems. Engineered for precision, the unit operates a floating action actuator to manage a mixing valve, ensuring accurate outdoor reset logic based on ambient temperatures. This control is critical for maintaining stable supply water temperatures in radiant floor heating and high-mass boiler loops, preventing thermal shock and optimizing boiler efficiency. The 360 features an adjustable heating curve and specialized boiler protection settings to minimize condensation risks in non-condensing systems. Contractors utilize this control to integrate mixing valve automation into multi-load configurations where consistent temperature stratification is required. With built-in warm weather shut down (WWSD) and outdoor air temperature (OAT) sensors, the 360 provides a robust solution for primary-secondary piping arrangements and hydronic temperature regulation.
- Precise Floating Action Control: Delivers accurate 120V pulses to any compatible 3-way or 4-way mixing valve actuator.
- Dynamic Outdoor Reset: Automatically adjusts supply water setpoints based on external conditions to reduce energy consumption.
- Boiler Return Protection: Safeguards cast iron heat exchangers by maintaining minimum return temperatures to prevent flue gas condensation.
- Integrated Digital Display: Provides real-time monitoring of system temperatures, setpoints, and error codes for rapid diagnostics.
- Universal Compatibility: Interfaces seamlessly with standard 10k thermistors for supply, return, and outdoor sensing.
Common Questions
How do I set the heating curve on the Tekmar 360?
The heating curve is adjusted via the internal menu by setting the starting water temperature and the design outdoor temperature. This ensures the mixing valve control provides the exact BTU load required for the specific heat loss of the building.
Can the Tekmar 360 be used with a 24V actuator?
No, this specific model provides 120Vac floating action output. For 24V applications, an isolating relay or a dedicated 24V mixing control is required to prevent component damage.
Does this control require an outdoor sensor to function?
While the control can operate at a fixed setpoint, utilizing the outdoor air sensor is highly recommended to enable the outdoor reset functionality, which significantly improves system performance and comfort.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
