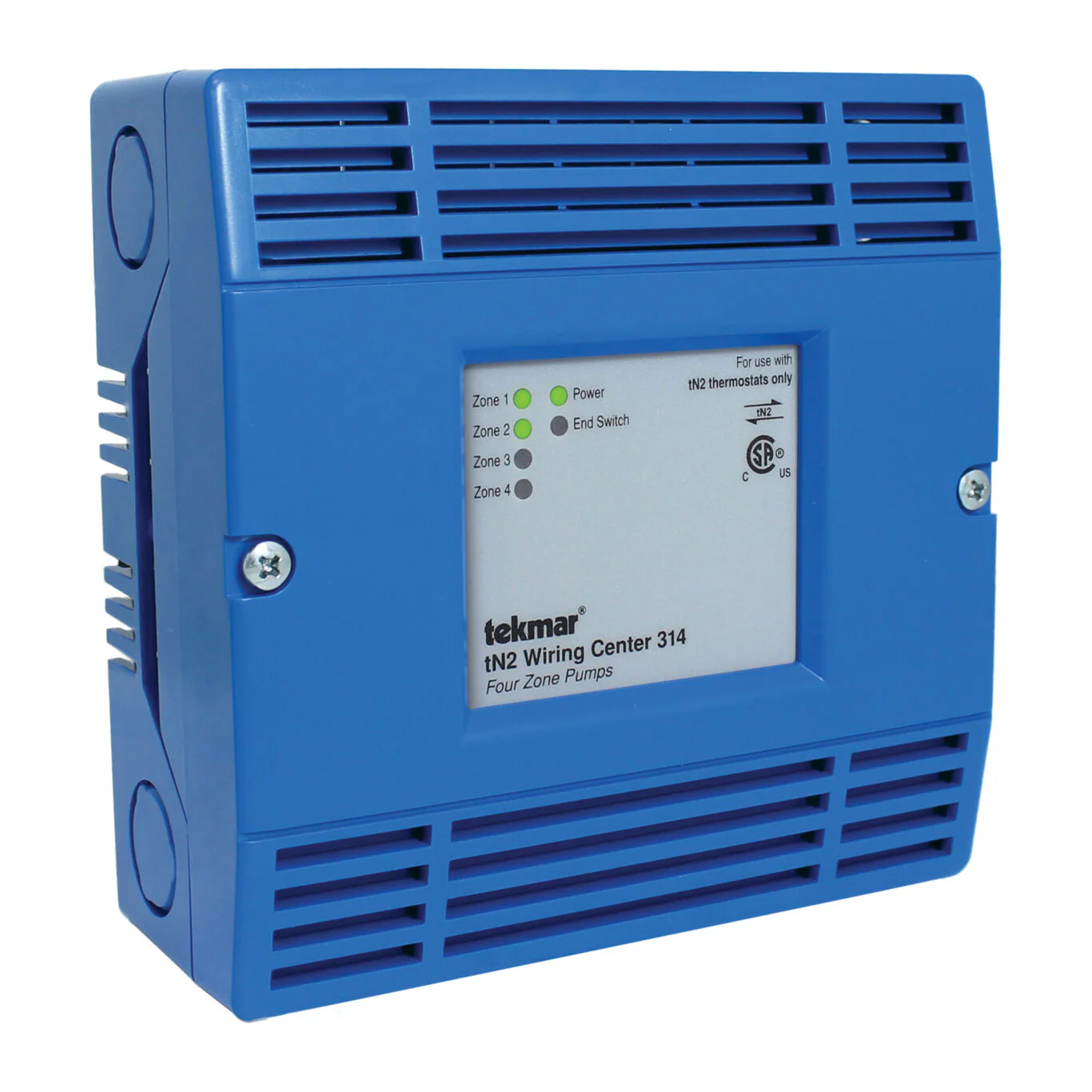

Tekmar Controls 314 Pump
The Tekmar Controls 314 Pump acts as a robust 24Vac tN2 Wiring Center designed to streamline hydronic installations by managing up to four tN2 thermostats and four 115Vac pumps. This multi-zone pump controller utilizes tekmarNet 2 technology, allowing for synchronized end switch operation that significantly reduces equipment short-cycling and increases overall system efficiency. Designed for professionals, the 314 requires only two wires for thermostat communication, making it an ideal choice for hydronic heating system control upgrades where existing wiring is limited. The inclusion of tN4 expansion terminals enables seamless integration with larger tekmarNet 4 networks, including boiler controls and reset modules. With an isolated dry contact end switch rated at 2A and 24V, this unit provides a reliable call for heat for most modern boilers. For field diagnostics, external diagnostic LEDs provide real-time status of power, zone calls, and pump activity, ensuring rapid troubleshooting during commissioning or service calls.
Key Benefits- Reduced Short-Cycling: Synchronizes zone calls to minimize boiler firing cycles and mechanical wear.
- Simplified 2-Wire Installation: Communicates with thermostats using only two wires, perfect for retrofitting older systems.
- Expandable Architecture: Built-in tN4 expansion terminals allow the unit to scale with complex HVACR applications.
- High-Voltage Pump Support: Directly switches up to four 115Vac centrifugal pumps (max 5A per relay).
- Enhanced Diagnostics: Individual zone LEDs and a master power indicator provide instant feedback on system operation.
Can I use standard 24V thermostats with the Tekmar 314?
No, the 314 is specifically engineered for use with tekmarNet 2 (tN2) thermostats to facilitate digital communication and synchronization.
Does the unit require an external power source?
Yes, it requires a 24Vac Class 2 transformer (minimum 20VA) to power the control logic and connected thermostats.
Can this control a two-stage heating system?
Yes, the 314 automatically detects and supports two-stage tN2 thermostats when connected to Zone 1 or Zone 3.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $344.62
-65%$344.62
$120.62Tekmar Controls 314 Pump
