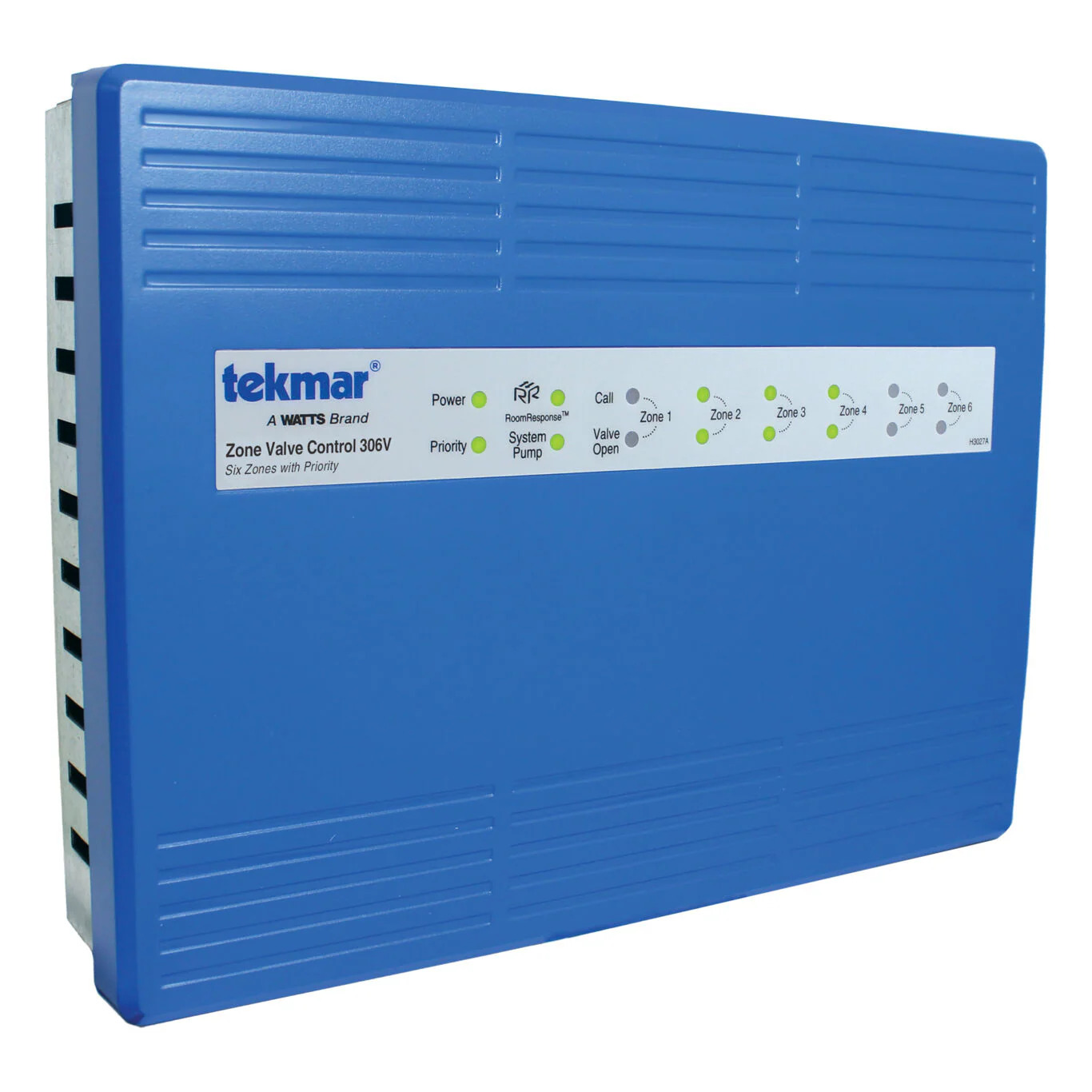

Tekmar Controls 306V Control Panel
The Tekmar 306V Control Panel is a professional-grade, microprocessor-based 6-zone valve control designed to manage multi-zone hydronic heating systems with precision. As a veteran-preferred solution for complex residential and light commercial layouts, this hydronic zone controller supports up to six thermostats and operates six independent 24V zone valves. The unit features a dedicated priority on Zone 1, allowing for seamless integration of an indirect domestic hot water (DHW) tank with optional priority override and post-purge functionality to maximize thermal efficiency.
For modern high-efficiency installations, the 306V includes the RoomResponse signal, providing a 0-10V (dc) or 4-20 mA output that communicates real-time demand to modulating-condensing boilers. This prevents short-cycling and optimizes the boiler’s firing rate. The panel is built with a rugged galvanized steel base and ABS plastic cover, featuring top, bottom, and back conduit knockouts for versatile field wiring. Internal T5A 250V slow-blow fuses protect both the 80VA transformer and the pump circuits, ensuring long-term reliability in demanding environments.
- Universal Compatibility: Works with all 2, 3, and 4-wire 24V zone valves and most low-voltage thermostats.
- Advanced Pump Management: Includes pump exercising to prevent seizure during off-seasons and a 1/3 HP system pump relay.
- Scalable Design: Supports unlimited zone expansion by connecting additional 300-series controllers.
- Diagnostic Feedback: External LED indicators provide immediate status for zone calls, priority activation, end switch closure, and RoomResponse signaling.
- Safety-First Wiring: Features four ground screws and integrated fused protection with two spare fuses included inside the cabinet.
Common Questions:
Can I use this with power-stealing thermostats?
Yes, though it is recommended to install a resistor (included) when using certain power-stealing digital thermostats to ensure stable operation and prevent "ghost" calls.
Does this support both pumps and valves?
The 306V is primary a zone valve control; however, Zone 1 is flexible and can be configured to operate a circulator pump for priority DHW applications instead of a valve.
How does "RoomResponse" improve my system?
It monitors thermostat on-time to calculate the actual heat load, sending a variable signal to your modulating boiler to adjust the water temperature, which reduces energy consumption and improves tenant comfort.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
