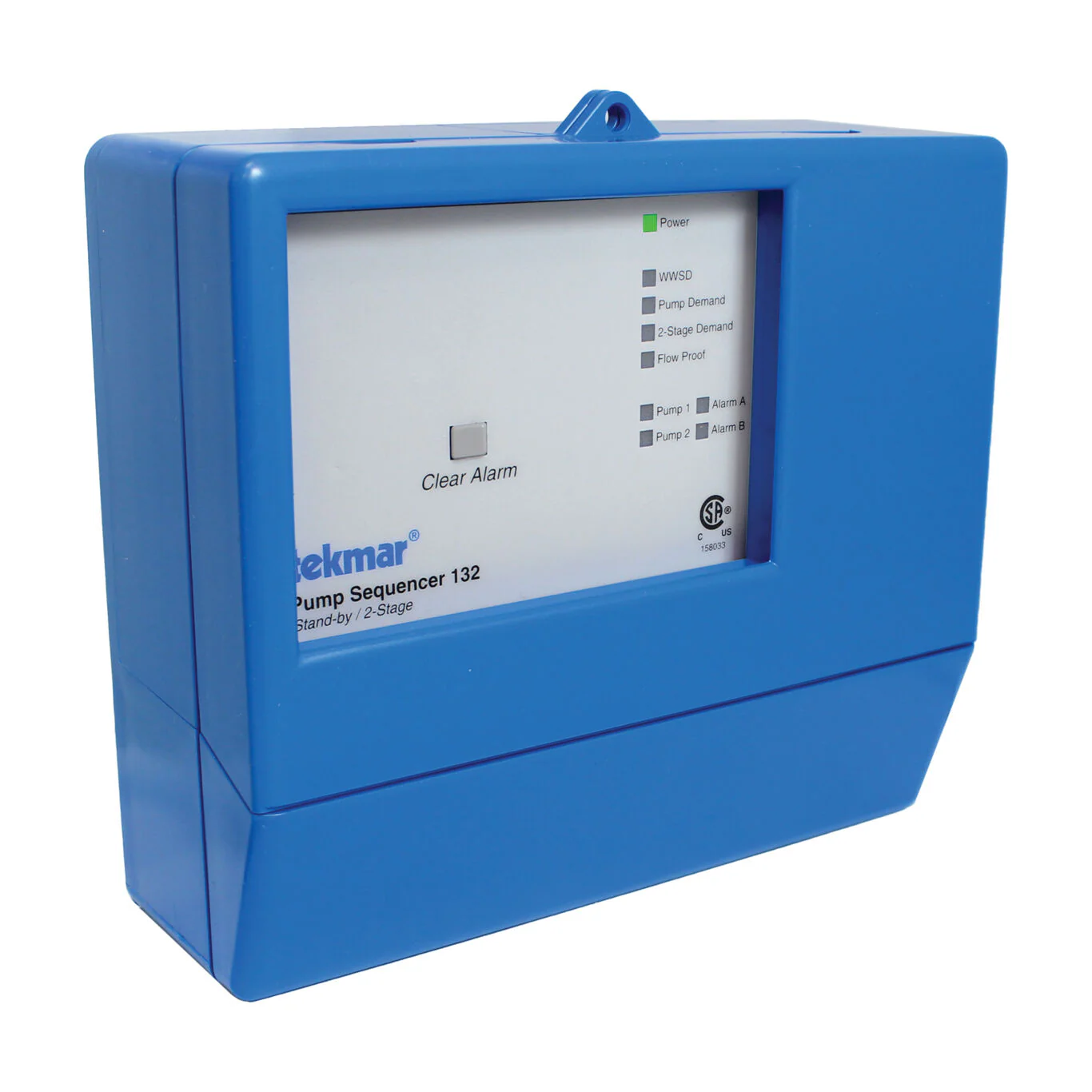

Tekmar Controls 132 Control
The Tekmar Controls 132 is a dedicated 120Vac Pump Sequencer Control engineered to manage two pumps in a lead-lag configuration to ensure equalized runtimes and system redundancy. For hydronic contractors managing secondary loops or boiler feed systems, the Tekmar 132 provides essential pump rotation logic based on a field-adjustable schedule. This HVAC pump controller features an internal timer that triggers automatic pump sequencing every 48 hours of run time, preventing motor seizure and sediment buildup during low-demand periods. The Tekmar 132 control operates with a SPDT relay output and includes a flow switch input to facilitate pump failure protection, ensuring that if the lead pump fails to provide flow, the lag pump is immediately energized. Designed for seamless integration into commercial or residential hydronic heating systems, this unit simplifies complex wiring and eliminates the need for external alternating relays or timers.
- Automatic Pump Rotation: Cycles lead-lag operation every 48 hours to balance motor wear and extend the lifespan of centrifugal pumps.
- Flow Switch Integration: Supports a 120Vac flow switch input for real-time pump failure detection and automatic failover.
- Status Indicators: High-visibility LEDs provide immediate diagnostic feedback on power status and active pump outputs.
- Compact Enclosure: The NEMA 1 rated housing allows for straightforward surface mounting near the primary piping manifold.
- Universal 120Vac Operation: Simplifies field installs by utilizing standard line voltage for both control logic and pump switching.
Common Technical Questions
Can the Tekmar 132 be used with variable speed pumps?
The 132 is designed for single-speed 120Vac on/off control. For VFD applications, it can serve as the enable signal, but it does not provide a 0-10V or 4-20mA modulating output.
How does the control handle a flow failure?
If the flow switch input remains open after the pump start-up delay, the control de-energizes the failed pump and activates the standby pump to maintain system circulation.
Is the rotation interval adjustable?
The Tekmar 132 uses a fixed 48-hour cumulative run-time interval to manage the lead-lag sequencer logic, ensuring consistent rotation without manual intervention.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
