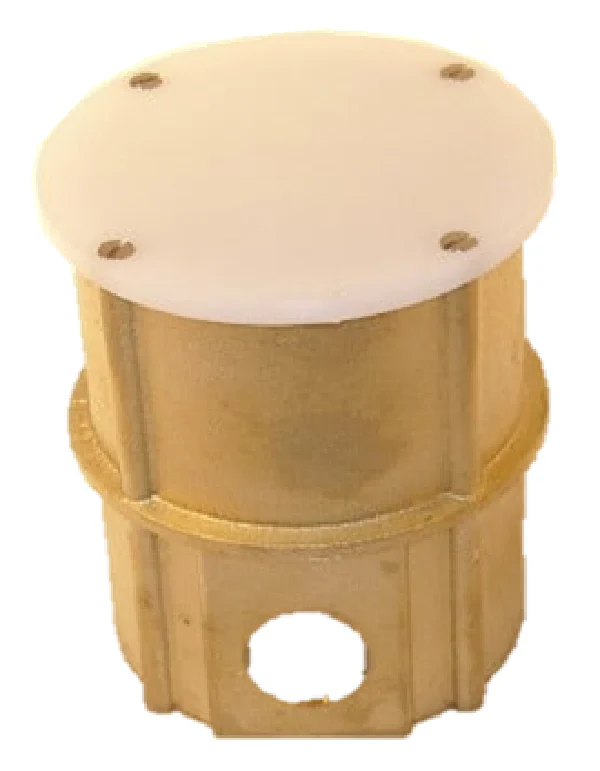

Tekmar Controls 091 Mounting Socket
The Tekmar Controls 091 Mounting Socket is the industry-standard housing required for flush-mount installation of the Tekmar 090 or 094 snow and ice sensors. Engineered from heavy-duty silicon brass, this in-slab sensor socket is designed to be cast directly into concrete during the initial pour, ensuring a stable and secure snow melt sensor installation. It features a high load rating of 15,000 lbs, making it suitable for high-traffic commercial driveways and emergency access entries. The socket includes a protective polyethylene cap to prevent concrete ingress during the pour, along with a dedicated mounting plate to simplify positioning on rebar. For optimal performance, the Tekmar 091 should be located at the lowest point of the slab where moisture naturally collects, halfway between heating pipes, to provide the most accurate slab temperature feedback and moisture detection to your snow melting control system.
Key Benefits- Durable Construction: Cast in silicon brass for superior corrosion resistance and long-term structural integrity in harsh environments.
- High Load Capacity: Rated for a 15,000 lb distributed load, ensuring it withstands heavy vehicle traffic without deformation.
- Installation Ready: Comes complete with a mounting plate, protective cap, and eight #6-32 x 3/8" screws for immediate field setup.
- Precise Fit: Specifically designed to accommodate the Tekmar 090 and 094 sensors, maintaining a flush-mount profile with the slab surface.
- Enhanced Drainage: Designed for installation over a gravel bed to prevent standing water from interfering with sensor readings.
- Can I install this after the concrete is poured? No, the 091 socket must be positioned and secured to rebar before the pour. Retrofitting requires core drilling, which is significantly more labor-intensive.
- Where is the best placement for the sensor socket? Install it at the lowest point of the sloped area where water runoff collects, ensuring it is halfway between heating elements to avoid false temperature readings.
- Is the plate included? Yes, the Tekmar 091 includes the polyethylene mounting plate required to tie the assembly to the rebar cage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
