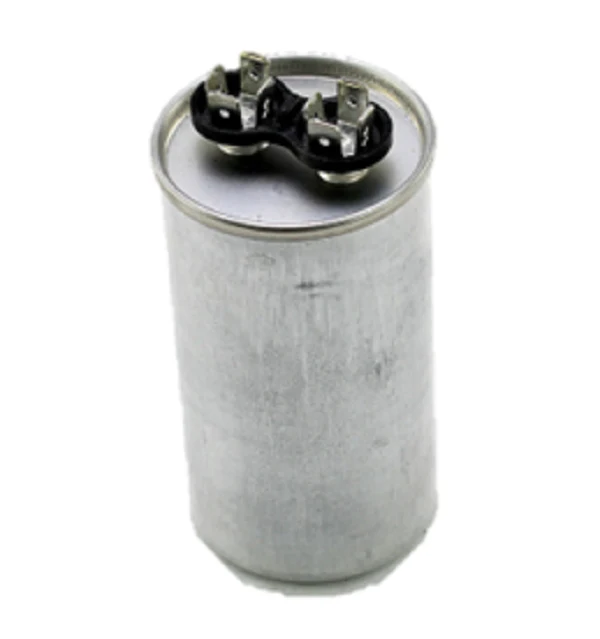

Tecumseh K150-18 Run Capacitor
The Tecumseh K150-18 Run Capacitor is a precision-engineered electrical component designed to maintain peak efficiency in single-phase compressor motors. Rated at 45 MFD (microfarads) with a maximum 370V single-action voltage rating, this capacitor provides the necessary phase shift to optimize motor torque and reduce operational amperage draw. Housed in a durable, oil-filled aluminum canister, the K150-18 is built to dissipate heat effectively, preventing dielectric breakdown during high-duty cycles in demanding refrigeration and HVAC environments. Field-proven for its reliability, this 45uF 370VAC HVAC capacitor is a direct OEM replacement part, ensuring compatibility with Tecumseh compressors used in commercial reach-in coolers and air conditioning condensers. For technicians, maintaining the correct capacitance is critical; a failed or weak 45 MFD motor run capacitor can lead to increased winding heat, reduced cooling capacity, and eventual compressor failure. This high-quality industrial-grade run capacitor features standard 1/4-inch male quick-connect terminals for a secure, low-resistance interface.
Key Benefits for Your Next Service Call:- Optimized Motor Performance: Precise 45 MFD capacity ensures the necessary phase-angle correction for high-torque starts and smooth running cycles.
- Thermal Stability: The robust aluminum housing and internal dielectric oil facilitate superior heat dissipation, protecting the HVAC compressor capacitor against premature fatigue.
- Universal Compatibility: Industry-standard 370V run capacitor specifications allow for cross-referencing with numerous single-phase motor applications requiring a 45uF rating.
- Secure Interfacing: Equipped with multi-terminal 1/4" quick-connects for rapid installation and reliable continuity under high-vibration conditions.
Can I use a 440V capacitor to replace this 370V unit?
Yes, you can always up-rate the voltage. A 440V capacitor will safely handle the 370V requirement of this circuit, provided the 45 MFD rating remains identical.
What are the symptoms of a failing K150-18?
Common signs include a compressor that is humming but not starting, the outer casing showing visible bulging or "mushrooming," and an out-of-tolerance reading when testing across the terminals with a multimeter.
Does this capacitor include a mounting strap?
This is the individual run capacitor unit. Most contractors reuse the existing mounting bracket or strap from the original installation, provided the diameter matches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
