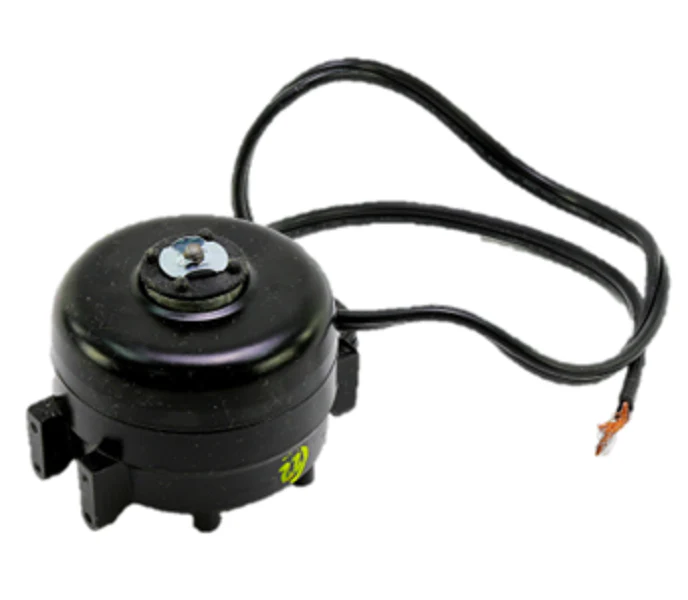

Tecumseh 810M009C09 Motor
The Tecumseh 810M009C09 is a high-efficiency 9 Watt condenser fan motor engineered for critical cooling performance in commercial refrigeration applications. Operating at 115 Volts with a Clockwise (CW) rotation, this unit is a direct replacement for OEM Tecumseh motors used in a variety of condensing units and reach-in coolers. Designed for continuous duty, it features a unit bearing design that ensures reliable heat dissipation and long-term mechanical stability in demanding environments. The shaper-pole motor architecture provides consistent torque and airflow, maintaining optimal head pressure for the refrigeration cycle. Contractors frequently utilize this 1550 RPM fan motor to restore system efficiency and prevent compressor overheating. Its standard mounting configuration allows for seamless integration into existing brackets, making it a staple for field service repairs where HVAC universal replacement motors are required for Tecumseh refrigeration parts maintenance.
Product Specifications and Benefits- Electrical Compatibility: Optimized for 115V, 50/60Hz circuits to match standard commercial power supplies.
- Output Power: 9W rating provides the necessary CFM for small to medium condenser coils.
- Rotation Direction: Fixed Clockwise (CW) rotation viewed from the lead end for specific OEM airflow patterns.
- Construction: Cast iron or aluminum housing designed to withstand the high-temperature environment of a condenser section.
- Installation Flexibility: Standard 4-bolt or rear-mount options common to the 810M series.
Is the rotation reversible on the 810M009C09?
No, this model is a fixed CW rotation motor. Always verify the fan blade pitch and rotation requirements of the specific condensing unit before installation to ensure proper airflow across the coils.
What are the common signs of failure for this condenser motor?
The most frequent indicators include increased amp draw, excessive bearing noise, or failure to start under load, which typically leads to high-pressure cutouts in the refrigeration system.
Can this motor be used in evaporator applications?
While technically possible if the voltage and rotation match, this unit is specifically designed for the ambient conditions and duty cycles typical of condenser fan operations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
