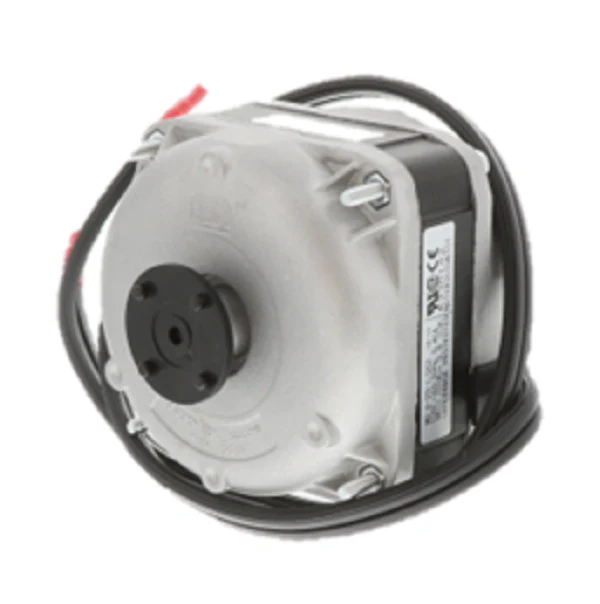

Tecumseh 6W115 Motor
The Tecumseh 6W115 Motor is a high-reliability 115V 1550RPM 6W motor designed for critical air-over applications in commercial refrigeration. As a shaded pole replacement motor, this unit is engineered for continuous duty in evaporator and condenser fan assemblies. With a 3.3-inch frame and CCWSE rotation, it serves as a direct drop-in for standard reach-in coolers and display cases. The Tecumseh 6W115 features impedance protection, ensuring the windings remain intact even during a locked-rotor condition caused by debris. Built with sleeve bearings and Class B insulation, it maintains consistent torque at a 0.41-amp draw, making it a staple for technicians requiring an OEM refrigeration motor that matches original equipment specifications. Its robust construction handles a 40°C ambient temperature rating, providing stable performance in demanding environments without excessive heat generation.
Key Benefits for HVACR Applications- Universal Compatibility: Facilitates easy replacement across several commercial refrigeration motor brands, including cross-references for Elco and ebm-papst units.
- Simplified Mounting: Features a standard 4-stud mount and hubless shaft (0.275" x 0.49") for quick installation in existing fan shrouds.
- Thermal Safety: Built-in impedance protection prevents coil burnout during stall events, a common failure point in neglected evaporator coils.
- High Durability: The totally enclosed air over (TEAO) design protects internal components from moisture and airborne contaminants.
Is the Tecumseh 6W115 reversible?
No, this specific model is fixed for Counter-Clockwise Shaft End (CCWSE) rotation. Always verify the pitch of your fan blade before installation to ensure proper airflow direction.
Can this motor replace a higher wattage unit?
No. You should never undersize a motor. If your original fan spec calls for 9W or 16W, the 6W output of the 6W115 will not provide sufficient static pressure, leading to motor overheating and poor refrigeration performance.
What is the typical cause of failure for these shaded pole motors?
Most failures in a 115v 1550rpm 6W motor are due to bearing seize from grease breakdown or coil failure from excessive voltage drops. If the motor is humming but not spinning, check for free shaft rotation first.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $138.43
-65%$138.43
$48.45Tecumseh 6W115 Motor
The Tecumseh 6W115 Motor is a high-reliability 115V 1550RPM 6W motor designed for critical air-over applications in commercial refrigeration. As a shaded pole replacement motor, this unit is engineered for continuous duty in evaporator and condenser fan assemblies. With a 3.3-inch frame and CCWSE rotation, it serves as a direct drop-in for standard reach-in coolers and display cases. The Tecumseh 6W115 features impedance protection, ensuring the windings remain intact even during a locked-rotor condition caused by debris. Built with sleeve bearings and Class B insulation, it maintains consistent torque at a 0.41-amp draw, making it a staple for technicians requiring an OEM refrigeration motor that matches original equipment specifications. Its robust construction handles a 40°C ambient temperature rating, providing stable performance in demanding environments without excessive heat generation.
Key Benefits for HVACR Applications- Universal Compatibility: Facilitates easy replacement across several commercial refrigeration motor brands, including cross-references for Elco and ebm-papst units.
- Simplified Mounting: Features a standard 4-stud mount and hubless shaft (0.275" x 0.49") for quick installation in existing fan shrouds.
- Thermal Safety: Built-in impedance protection prevents coil burnout during stall events, a common failure point in neglected evaporator coils.
- High Durability: The totally enclosed air over (TEAO) design protects internal components from moisture and airborne contaminants.
Is the Tecumseh 6W115 reversible?
No, this specific model is fixed for Counter-Clockwise Shaft End (CCWSE) rotation. Always verify the pitch of your fan blade before installation to ensure proper airflow direction.
Can this motor replace a higher wattage unit?
No. You should never undersize a motor. If your original fan spec calls for 9W or 16W, the 6W output of the 6W115 will not provide sufficient static pressure, leading to motor overheating and poor refrigeration performance.
What is the typical cause of failure for these shaded pole motors?
Most failures in a 115v 1550rpm 6W motor are due to bearing seize from grease breakdown or coil failure from excessive voltage drops. If the motor is humming but not spinning, check for free shaft rotation first.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
