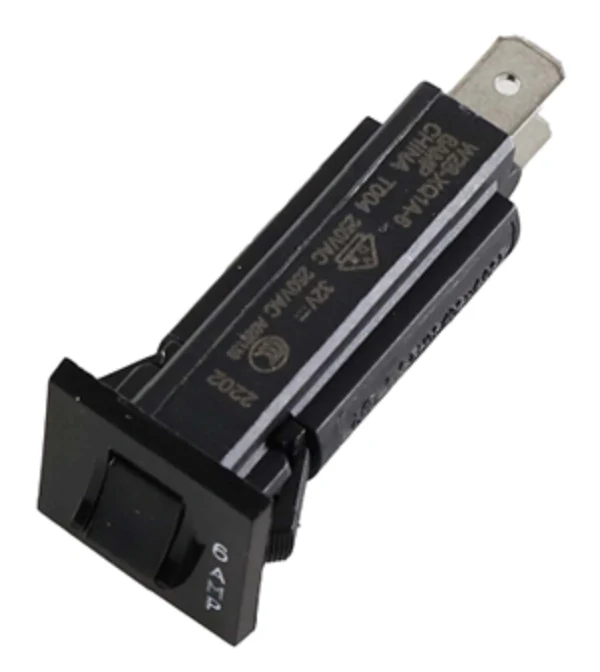

TE Connectivity W28-XQ1A-6 Circuit Breaker
The TE Connectivity W28-XQ1A-6 is a professional-grade 6 Amp thermal circuit breaker designed for high-reliability circuit protection in industrial and HVACR applications. Engineered as a superior fuse holder type circuit breaker, this single-pole unit effectively replaces traditional slow-blow glass cartridge fuses, eliminating the need for spare fuse inventory. Featuring a robust push-to-reset button, it provides clear visual trip indication when the black button extends, allowing technicians to quickly identify faults in the field. This panel mount circuit breaker is rated for 250VAC and 32VDC operation, offering a 1,000A interrupt capacity to ensure equipment safety during overcurrent events. The unit is equipped with standard 0.250-inch (6.35mm) quick-connect terminals for efficient, secure wiring. With its sleek black bezel and white rate markings, it provides a clean, professional finish for control panels and appliance interfaces where durable thermal overload protection is required.
Key Benefits for Technicians:- Direct Fuse Replacement: Designed to replace standard 3AG slow-blow fuses in existing panels without complex rewiring.
- Instant Visual Diagnostics: The resettable actuator extends upon tripping, allowing for immediate identification of overloaded circuits.
- Simplified Installation: Labor-saving snap-in mounting design fits standard panel cutouts, reducing labor time during upgrades.
- Durable Construction: Built by Potter & Brumfield to withstand industrial environments with a trip-free mechanism that cannot be held "on" during a fault.
- Universal Connectivity: Standard 1/4-inch male tabs ensure compatibility with existing wiring harnesses and crimp connectors.
Can the W28-XQ1A-6 handle both AC and DC loads?
Yes, this thermal breaker is rated for operation up to 250VAC at 50/60 Hz and 32VDC, making it versatile for both line voltage machinery and low-voltage control circuits.
What is the typical trip time for this 6A breaker?
According to standard thermal curves for the W28 series, this breaker will typically trip within 2.2 to 15 seconds when subjected to a 200% overload (12 Amps).
Does this unit require a mounting nut?
No, this specific model features a snap-in mounting style which secures directly into the panel cutout without the need for additional hardware.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
