TE Connectivity W28-XQ1A-10 Circuit Breaker

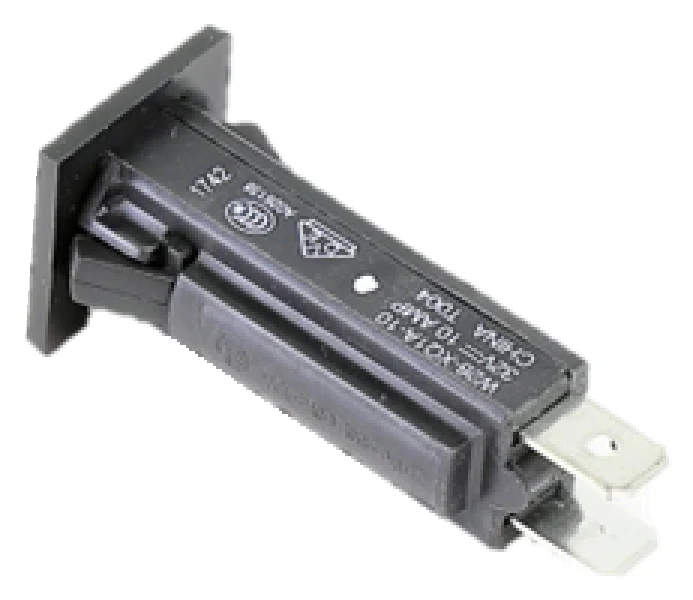

The TE Connectivity W28-XQ1A-10 is a high-performance 10 amp thermal circuit breaker designed for compact panel mounting in HVACR control systems and industrial equipment. This single pole push-to-reset breaker serves as a reliable replacement for standard 0.625-inch fuse holders, offering a resettable alternative that eliminates the need for fuse replacement after a nuisance trip. Engineered with a quick-connect terminal interface, it ensures a secure, vibration-resistant electrical connection in demanding environments. The unit features a sleek black bezel with white rate markings for high visibility and a push-button actuator for manual reset functionality. This thermal-type protector utilizes a bimetallic strip mechanism to provide accurate overcurrent protection, making it ideal for protecting secondary circuits in furnaces, air handlers, and commercial refrigeration units. Its panel mount design allows for versatile integration into existing control boards where space is at a premium and reliable current sensing is mandatory for component longevity.
Key Benefits for Technicians:- Streamlined Installation: Designed to fit standard 15.9mm (5/8 inch) round or "D" shaped cutouts, ensuring compatibility with existing fuse holder footprints.
- Enhanced Reliability: The quick-connect terminals (0.250") facilitate rapid wiring and reduce the risk of loose connections in high-vibration HVACR applications.
- Operational Clarity: Clear white-on-black amperage markings allow for immediate identification of circuit ratings during field inspections.
- Resettable Protection: Minimizes downtime by allowing technicians to reset the circuit with a simple push-to-reset button after clearing the fault condition.
- Compact Form Factor: The space-saving design is optimized for crowded control panels and power distribution units.
Can this breaker be used to replace a standard glass fuse?
Yes, the W28-XQ1A-10 is specifically engineered to replace fuse holders of the same diameter, allowing you to upgrade a system to a resettable 10 amp circuit breaker without modifying the panel.
What is the maximum voltage rating for this thermal protector?
This 10A thermal breaker is typically rated for up to 250VAC and 32VDC, making it suitable for both line voltage and low-voltage control circuits.
Does this unit provide instantaneous trip protection?
No, as a thermal circuit breaker, it operates on a time-delay curve based on heat accumulation in the bimetal element. This is advantageous for circuits with high inrush currents where a standard magnetic breaker might trip prematurely.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
