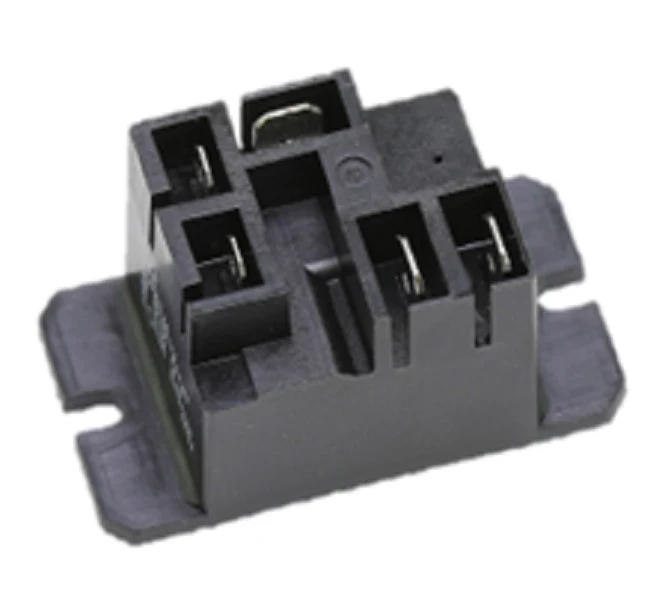

TE Connectivity T9AP5D52-24 Relay
The TE Connectivity T9AP5D52-24 Relay is a heavy-duty 24Vdc power relay designed specifically for the rigorous demands of HVACR motor control and industrial switching. This SPDT relay features a rugged 20Amp contact rating at 277VAC, utilizing silver cadmium oxide (AgCdO) contacts to minimize pitting and ensure reliable continuity in high-cycle environments. Built with a Class-F monostable coil rated for temperatures up to 155°C, this flange mount relay is engineered to withstand the thermal stress of compact air handler cabinets and furnace control boards.
Installation is streamlined via standardized quick-connect terminals, featuring 6.35mm (1/4") tabs for load contacts and 4.75mm tabs for the coil, ensuring secure vibration-resistant wiring. The dust protected plastic case safeguards the internal switching mechanism from environmental contaminants, a critical factor for long-term field performance. Whether you are replacing a faulty T9A series relay or integrating it into a new panel layout, the narrow profile and reliable DC coil operation provide the switching density required for high-performance direct-current relay applications.
Key Benefits:- 20A SPDT Contact Rating: Robust Form C relay configuration handles high-amperage HVAC fan motors and compressors with ease.
- Industrial-Grade Insulation: Class-F coil insulation (155°C) prevents premature failure in hot electrical enclosures.
- Flange Mounting Versatility: Direct-chassis mounting simplifies retrofit installs and secure panel attachment.
- Dust Protected Housing: The plastic enclosure mitigates contact failure by blocking airborne debris and contaminants.
- Fast Integration: Standard QC terminals allow for immediate drop-in replacement without wire nutting or soldering.
- Can this relay replace an SPST (Normally Open) model? Yes, the SPDT configuration includes both Normally Open (NO) and Normally Closed (NC) contacts, making it a universal solution for most 24Vdc switching needs.
- Is this relay suitable for induction motors? Absolutely. It is rated for motor-duty applications and is compatible with air handles and HVAC blowers requiring up to 20A support.
- What are the coil resistance specs? The coil features a nominal resistance of 576?, drawing approximately 41.7mA, which is compatible with standard HVAC 24V control circuits.
