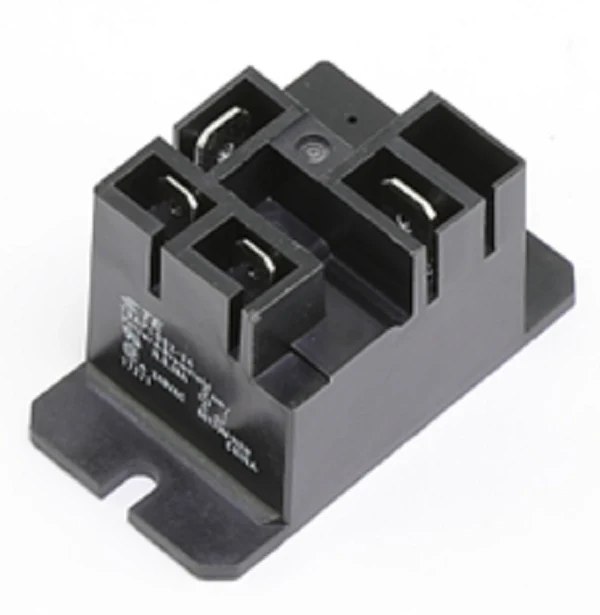

TE Connectivity T9AP1D52-24 Relay
The TE Connectivity T9AP1D52-24 Relay is a heavy-duty 30Amp General Purpose Relay designed for high-demand HVACR and industrial control applications. This SPST-NO (1 Form A) power relay features a 24Vdc coil and is engineered to handle high inrush currents across motor and resistive loads. Built with Silver Cadmium Oxide (AgCdO) contacts, the T9A series ensures reliable switching performance even in rigorous environments. The flanged mount design allows for secure panel installation, eliminating the need for complex PCB integration in retrofits or custom builds. Encased in a dust protected plastic case, these Potter & Brumfield power relays maintain high mechanical endurance under Class F insulation standards, supporting operating temperatures up to 85°C. For contractors looking for a direct replacement 24Vdc relay, this unit offers quick-connect terminals (6.35mm for contacts and 4.75mm for the coil) for fast, solder-free wiring in the field.
Key Benefits:- High Power Capacity: Rated for up to 30A at 277VAC, making it ideal for large compressors, fans, and heating elements.
- Versatile Mounting: The flanged mount housing simplifies secure attachment to panels or enclosures without additional hardware.
- Rugged Durability: Features a dust-protected case and Class F coil insulation to withstand the high-temperature environments typical of HVAC unit cabinets.
- Easy Installation: Standard quick-connect terminals reduce labor time during service calls and ensure a tight electrical connection.
- Is the T9AP1D52-24 compatible with standard HVAC 24V control circuits? Yes, the 24Vdc coil and SPST-NO contact arrangement are standard for switching high-current loads in modern climate control systems.
- What is the maximum operating temperature for this relay? This T9A series relay is rated for ambient temperatures between -55°C and 85°C, ensuring performance in extreme mechanical rooms.
- Does this relay require soldering for installation? No, this model uses quick-connect terminals for efficiency, though consistent with technical best practices, ensure your female spade connectors are sized correctly for 30A loads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
