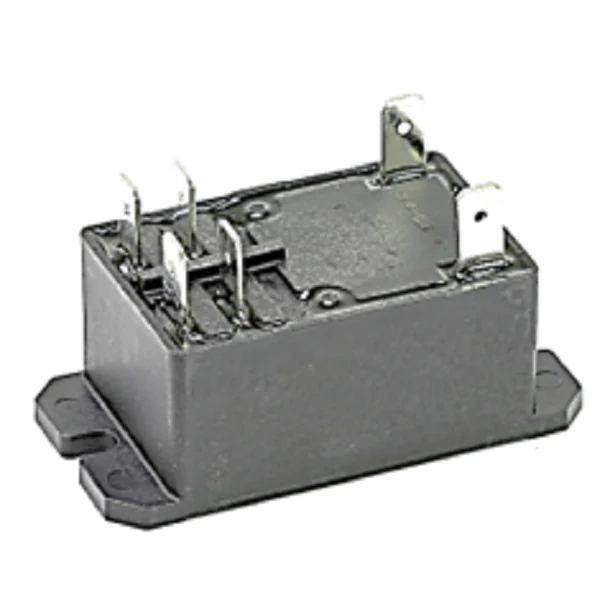

TE Connectivity T92P7D22-24 Relay
The TE Connectivity T92P7D22-24 Relay is a heavy-duty 30A power relay engineered for high-demand switching in HVACR and industrial control systems. Designed to manage inductive compressor loads and heating elements, this DPST-NO relay features dual poles with normally open contacts, ensuring reliable isolation and performance. The 24Vdc coil is rated with UL Class F insulation, allowing it to withstand ambient temperatures up to 85°C while maintaining electrical integrity.
Housed in a dust protected plastic case, this unit is built for durability in mechanical rooms and rooftops. Installation is streamlined via a flanged cover for panel mounting, utilizing industry-standard 0.250-inch quick-connect terminals for high-current contact paths and 0.187-inch terminals for the coil. With its flange mount DPST configuration, the T92P7D22-24 is a direct solution for technicians requiring a robust general purpose power relay that meets strict CSA, UL, and VDE standards for safety and operational longevity in HVAC compressor control circuits.
Key Benefits for Technicians:- High Switching Capacity: Rated for up to 30 Amps at 277Vac, making it ideal for 3.5-ton compressor applications.
- Superior Insulation: Features a Class F coil insulation system (155°C max coil temperature) to prevent breakdown under thermal stress.
- Easy Mounting: The flanged cover allows for secure chassis or panel attachment without specialized PCB hardware.
- Robust Connectivity: Heavy-duty quick-connect terminals ensure low-resistance joints even under high vibration.
- Environmentally Protected: Dust-protected housing (RTI) prevents particulate ingress from interfering with contact travel.
Is the T92P7D22-24 suitable for inductive loads?
Yes, this 30-amp power relay is specifically designed for inductive compressor loads and motor control, featuring silver tin oxide (AgSnOInO) contacts that resist welding and pitting.
What is the difference between T92P and T92S models?
The T92P designation refers to the panel mount flanged cover version, whereas the T92S is typically the PCB-mount version without the mounting ears.
Can this relay replace a definite purpose contactor?
Technicians often use the T92 series to replace smaller contactors in self-contained units where space is limited but high-current switching is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
