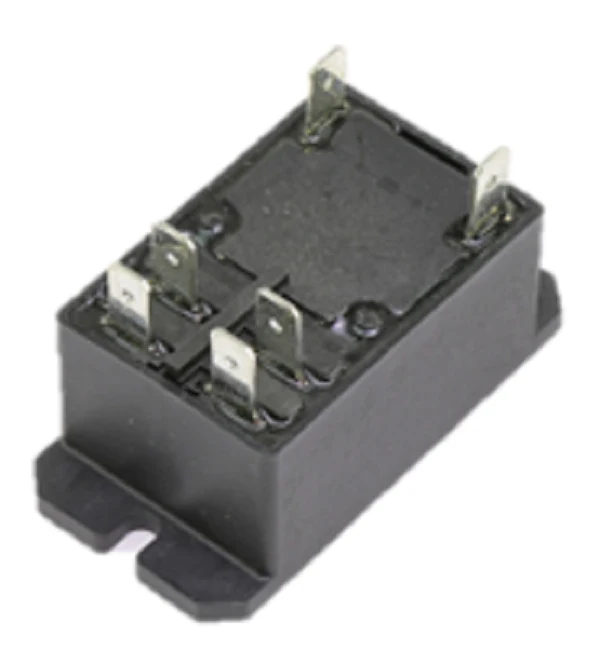

TE Connectivity T92P7D22-22 Relay
The TE Connectivity T92P7D22-22 is a robust high power DPST-NO relay designed for demanding HVACR and industrial applications. Built to handle heavy-duty loads, this 30A power relay features a 22VDC coil and a dust-protected plastic case for reliable operation in harsh environments. The flanged cover design allows for secure panel mount installation, while the standard quick-connect terminals simplify wiring for field technicians. With a contact rating capable of managing high-inrush currents, this T92 series relay is a standard choice for controlling compressor loads, motor switching, and power distribution systems where switching precision is critical.
Key Benefits
- High Current Capacity: rated for 30A switching, making it suitable for 3.5-ton compressor applications and high-wattage heater elements.
- Industrial Durability: equipped with a dust protected plastic case (RT I) to prevent environmental contaminants from affecting contact integrity.
- Simplified Mounting: the flanged cover provides a stable panel mount configuration, reducing vibration-induced fatigue.
- Efficient Termination: standard quick-connect terminals ensure fast, secure connections during installation or emergency repairs.
- Reliable Configuration: the Double Pole Single Throw (DPST-NO) setup allows for simultaneous control of two separate circuits.
Common Questions
What are the primary applications for the T92P7D22-22?
This relay is commonly used in HVAC systems for compressor switching, as well as in industrial motor controls, water heaters, and power supplies where high-amperage switching is required.
Is this relay suitable for induction motor loads?
Yes, the T92 series is specifically engineered to handle high LRA (Locked Rotor Amps) and FLA (Full Load Amps) typically associated with induction motors and compressors.
Can I use a 24VDC source for this 22VDC coil?
While the 22VDC coil has an operating range, you must verify your specific system voltage. Excessive voltage can cause coil overheating, while insufficient voltage may lead to contact chatter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
