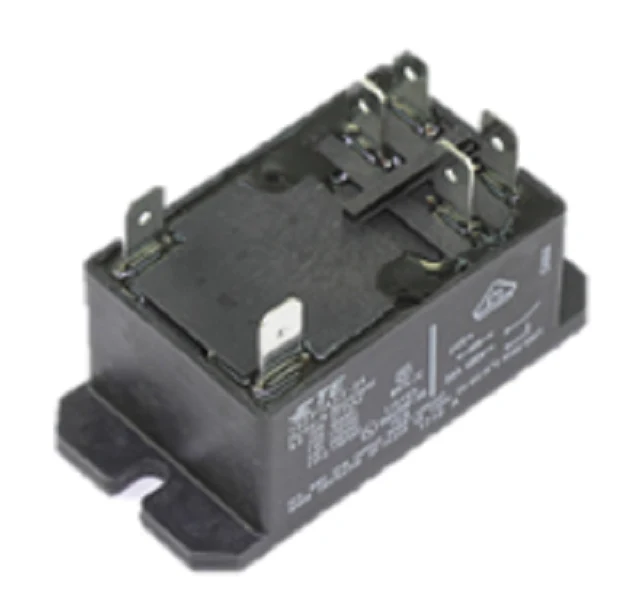

TE Connectivity T92P7A22-24 Relay
The TE Connectivity T92P7A22-24 Relay is a rugged, industry-standard DPST-NO power relay engineered for heavy-duty switching in HVACR and industrial control systems. This 24VAC coil relay is specifically designed to manage high-inrush compressor loads, featuring a 30A contact rating at 277VAC. Its double-pole single-throw configuration allows for the simultaneous switching of two circuits, providing high-capacity performance in a compact footprint. Enclosed in a dust-protected plastic case, the unit maintains internal integrity in demanding environments. Implementation is streamlined for contractors via quick-connect terminals and a flanged cover for secure panel mount integration. With Class-F insulation and 8mm creepage/clearance between the coil and contacts, this relay meets strict safety standards for high power switching applications. Whether you are replacing a faulty Potter & Brumfield relay or performing a new install, the T92P7A22-24 provides reliable, monostable operation across a broad temperature range for critical motor and heater control.
Key Benefits:- High Power Capacity: Rated for up to 30 Amps, making it ideal for 1.5HP motors and high-current HVAC induction loads.
- Reliable Termination: Features 0.250-inch (6.35mm) quick-connect terminals for fast, secure wiring in the field.
- Enhanced Insulation: Utilizing Class-F coil insulation to withstand maximum temperatures up to 155°C without compromising structural integrity.
- Versatile Mounting: The flanged cover allows for simple, direct panel mounting without the need for additional DIN rail accessories.
- Safety Compliance: UL recognized and CSA certified, engineered with 1500Vrms dielectric strength between open contacts.
- Can this relay replace a DPDT model? If your application only requires DPST-NO functionality (two normally open circuits), this is a suitable choice; however, it cannot replace a DPDT relay if the NC (Normally Closed) side is required.
- What is the coil voltage requirement? This specific model requires a 24VAC control signal. Applying 120V or 240V to the coil will cause immediate failure.
- Is it suitable for outdoor HVAC units? Yes, the dust-protected case and RTI environmental protection make it a standard choice for condenser and air handler control boxes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $27.24
-65%$27.24
$9.53TE Connectivity T92P7A22-24 Relay
The TE Connectivity T92P7A22-24 Relay is a rugged, industry-standard DPST-NO power relay engineered for heavy-duty switching in HVACR and industrial control systems. This 24VAC coil relay is specifically designed to manage high-inrush compressor loads, featuring a 30A contact rating at 277VAC. Its double-pole single-throw configuration allows for the simultaneous switching of two circuits, providing high-capacity performance in a compact footprint. Enclosed in a dust-protected plastic case, the unit maintains internal integrity in demanding environments. Implementation is streamlined for contractors via quick-connect terminals and a flanged cover for secure panel mount integration. With Class-F insulation and 8mm creepage/clearance between the coil and contacts, this relay meets strict safety standards for high power switching applications. Whether you are replacing a faulty Potter & Brumfield relay or performing a new install, the T92P7A22-24 provides reliable, monostable operation across a broad temperature range for critical motor and heater control.
Key Benefits:- High Power Capacity: Rated for up to 30 Amps, making it ideal for 1.5HP motors and high-current HVAC induction loads.
- Reliable Termination: Features 0.250-inch (6.35mm) quick-connect terminals for fast, secure wiring in the field.
- Enhanced Insulation: Utilizing Class-F coil insulation to withstand maximum temperatures up to 155°C without compromising structural integrity.
- Versatile Mounting: The flanged cover allows for simple, direct panel mounting without the need for additional DIN rail accessories.
- Safety Compliance: UL recognized and CSA certified, engineered with 1500Vrms dielectric strength between open contacts.
- Can this relay replace a DPDT model? If your application only requires DPST-NO functionality (two normally open circuits), this is a suitable choice; however, it cannot replace a DPDT relay if the NC (Normally Closed) side is required.
- What is the coil voltage requirement? This specific model requires a 24VAC control signal. Applying 120V or 240V to the coil will cause immediate failure.
- Is it suitable for outdoor HVAC units? Yes, the dust-protected case and RTI environmental protection make it a standard choice for condenser and air handler control boxes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
