TE Connectivity T92P7A22-120 Relay

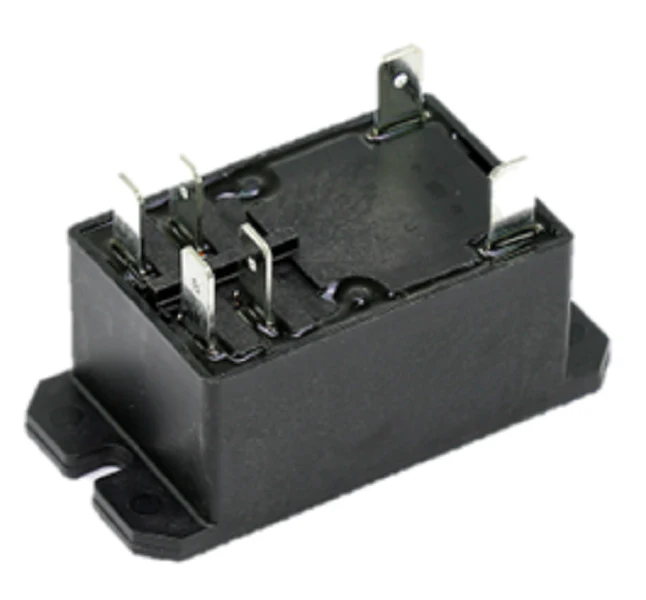

The TE Connectivity T92P7A22-120 Relay is a heavy-duty 30 Amp high power relay engineered for demanding HVACR and industrial applications. As a DPST-NO (2 Form A) power relay, it is specifically designed to handle high-inrush compressor loads and motor or heater circuits where reliability is non-negotiable. This Potter & Brumfield T92 series component features a 120VAC coil with a 950 Ohm resistance, housed in a dust protected plastic case to ensure long-term performance in environments prone to debris. The panel mount design, facilitated by a flanged cover, allows for secure installation, while the 0.250-inch quick-connect terminals streamline field replacement and wiring for technicians.
Built with Silver Cadmium Oxide (AgCdO) contacts, this relay provides superior arc resistance and high switching capacity up to 600VAC. Its Class F coil insulation supports a maximum coil temperature of 155°C, making it a robust choice for high-ambient temperature settings. Whether you are servicing a 3.5-ton AC unit or a commercial refrigeration system, this 120V DPST power relay delivers the mechanical life and electrical ratings required to keep heavy equipment operational under cycling loads.
Key Benefits:- High Switching Capacity: Rated for 30A at 277VAC, ideal for commercial HVAC and industrial motor control.
- Durable Construction: Features Silver Cadmium Oxide contacts and a dust protected casing for industrial-grade resilience.
- Thermal Resistance: Equipped with Class F insulation to withstand demanding duty cycles in hot electrical cabinets.
- Easy Installation: Integrated flange mount and quick-connect terminals facilitate rapid mounting and secure electrical connections.
- Can this relay handle a 3.5-ton air conditioning compressor? Yes, the T92 series is rated to manage the Full Load Amperage (FLA) and Locked Rotor Amperage (LRA) typical of 3.5-ton compressor applications.
- What is the difference between this and the T92P7A22-24? The T92P7A22-120 utilizes a 120VAC coil, whereas the -24 version requires a 24VAC control signal. Ensure your control circuit voltage matches the 120V rating of this unit.
- Is this relay suitable for both NO and NC configurations? No, this is a DPST-NO (Normally Open) relay, meaning the circuit is open when the coil is de-energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
