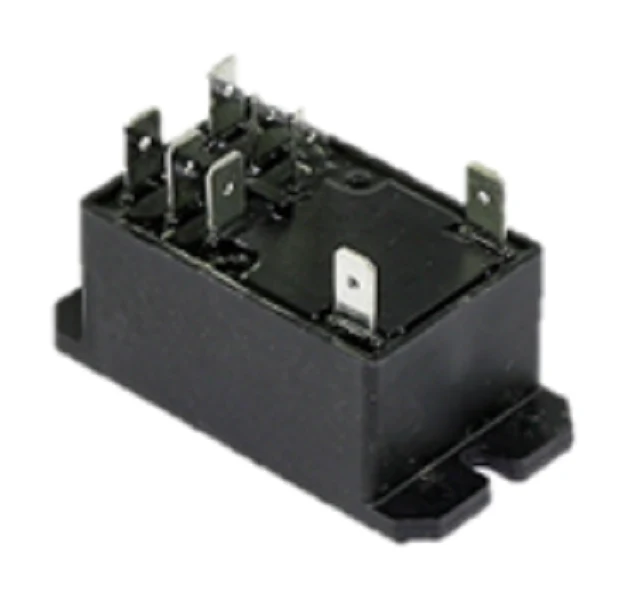

TE Connectivity T92P11A22-24 Relay
The TE Connectivity T92P11A22-24 is a heavy-duty DPDT power relay engineered for high-demand HVACR and industrial control circuits. Operating with a 24VAC coil, this high-power relay is rated for 30A switching, making it a reliable choice for managing compressor loads, heater banks, and motor starters. The dust-protected plastic case ensures internal components remain free from environmental contaminants, while the flanged cover allows for secure panel mounting in various orientations. Designed with quick-connect terminals, it facilitates fast field replacements and secure electrical connections. This industrial power relay is a standard solution for 30 amp relay applications where inductive load switching and contact reliability are paramount. Whether you are replacing a failed component or upfitting a control panel, the T92P11A22-24 provides the mechanical durability and electrical capacity required for 24/7 HVAC operations.
Key Benefits- High Current Capacity: Rated for up to 30A at 277VAC, suitable for direct control of heavy HVACR loads.
- Flexible Mounting: Flanged cover design enables easy panel mount installation without specialized brackets.
- Reliable Switching: Double-pole, double-throw (DPDT) configuration allows for simultaneous control of multiple circuits.
- Simplified Wiring: Standard 1/4 inch (6.35mm) quick-connect terminals reduce installation time for technicians.
- Environmental Protection: The enclosed housing prevents contact fouling in dusty mechanical room environments.
What is the coil voltage required for the T92P11A22-24?
This relay operates on a standard 24VAC control circuit, making it compatible with most residential and commercial HVAC transformers.
Can this relay replace a T92 series relay with PCB pins?
The T92P11A22-24 features quick-connect terminals and a flanged case for panel mounting. If your application requires PCB through-hole mounting, ensure your layout can accommodate the terminal offset or look for the T92S series variant.
Is this relay suitable for switching inductive motor loads?
Yes, the 30A rating is robust enough to handle the inrush current of fans, blowers, and small compressors typically found in HVACR equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
