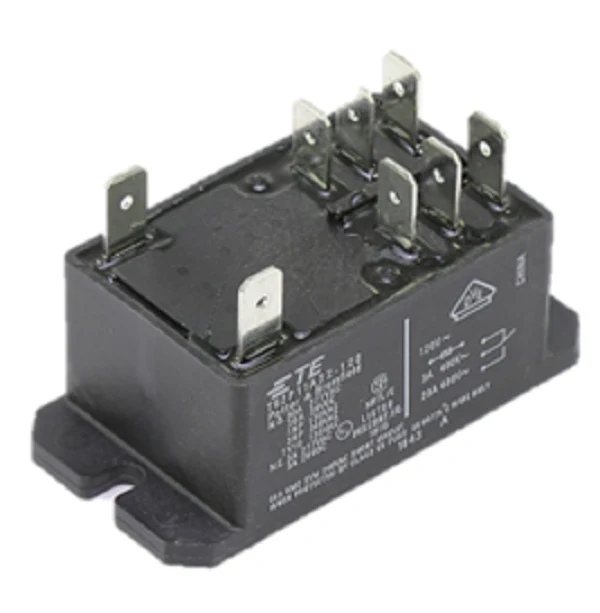

TE Connectivity T92P11A22-120 Relay
The TE Connectivity T92P11A22-120 Relay is a heavy-duty 30Amp High Power PCB Relay engineered for demanding HVACR and industrial control circuits. Built by Potter & Brumfield, this DPDT (Double Pole Double Throw) power relay is specifically designed to manage high-inrush inductive loads, making it an ideal choice for compressor control in systems up to 3.5 tons. It features a 120Vac non-latching coil with Class F insulation rated for temperatures up to 155°C, ensuring stable performance in high-ambient environments. The dust protected plastic case safeguards the internal silver cadmium oxide contacts from contaminants, while the flanged cover allows for secure panel mount integration. With standard 1/4-inch quick-connect terminals, technicians can execute fast, reliable field replacements without the need for specialized soldering equipment. This T92 Series relay provides robust switching capabilities at 277VAC, maintaining high dielectric strength between open contacts to prevent arc tracking in critical power applications.
Key Benefits- High Load Capacity: Rated for 30A at 277VAC, providing reliable switching for heavy-duty motors and HVAC compressors.
- Versatile Mounting: Includes a flanged cover designed for standard panel mounting, offering stability in high-vibration equipment.
- Durable Construction: Features Silver Cadmium Oxide contacts and a dust protected plastic case for extended service life in harsh environments.
- Simple Installation: Equipped with standard male quick-connect terminals (0.250") for rapid wiring and maintenance.
- Thermal Resilience: Class F coil insulation system supports continuous operation in high-temperature industrial settings.
Is the T92P11A22-120 suitable for controlling HVAC compressors?
Yes, this specific model is designed to handle the Locked Rotor Amps (LRA) and Full Load Amps (FLA) typically associated with compressor loads in 3.5-ton units.
What is the difference between this and the T92S series?
The T92P designation indicates a panel-mount flanged cover with quick-connect terminals, whereas the T92S typically refers to the PCB-mount version without the flanged case.
Can I use this relay for 240V loads?
While the 120Vac coil requires a 120V signal to energize, the DPDT contacts are rated to switch loads up to 277VAC/600VAC, making it compatible with 240V circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
