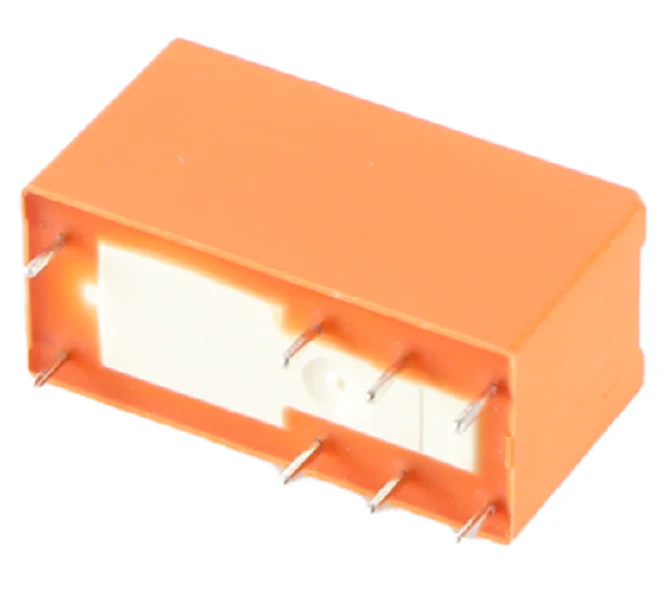

TE Connectivity RT424024 Relay
The TE Connectivity RT424024 Relay is a reliable DPDT (2 Form C) power relay engineered for high-density PCB mounting applications. Operating on a 24Vdc coil, this monostable, non-latching relay provides a standard 8A contact rating and is capable of handling switching voltages up to 400Vac. Part of the Schrack RT2 series, the RT424024 is designed with silver nickel (AgNi) contacts, ensuring consistent performance and resistance to welding. With 5kV/10mm isolation between the coil and contacts, it meets rigorous safety standards for industrial control and HVACR automation. The 1.44 kOhm coil resistance and low 400mW power consumption make it an efficient choice for boiler controls, interface modules, and timers. Its flux-proof (RTII) construction allows for reliable through-hole soldering, providing veteran technicians with a durable solution for field repairs and system builds where high-switching capacity and a compact footprint are required.
Key Benefits:- Universal Application Support: Ideal for HVACR boiler controls, garage door systems, and POS automation requiring a 24Vdc power relay.
- High Thermal Stability: Operates efficiently in temperatures ranging from -40°C to 85°C, perfect for demanding industrial environments.
- Superior Insulation: Features 5kV/10mm reinforced insulation between the coil and contacts for enhanced equipment safety.
- High Switching Capacity: Capable of managing a breaking capacity of up to 2000VA with an 8A continuous current rating.
- Terminal Reliability: Standard PCB-THT solder terminals ensure a secure, low-resistance connection on the board.
- What are the primary applications for the TE Connectivity RT424024? This relay is commonly utilized in HVAC interface modules, industrial timers, and general-purpose boiler control boards.
- Can this relay handle high-voltage AC loads? Yes, the RT424024 is rated for switching voltages up to 400Vac, with a 250Vac nominal rating.
- Is the RT424024 pin-compatible with other RT2 series relays? Yes, it follows the standard RT2 series footprint, making it a drop-in replacement for most 8A DPDT PCB relays within that family.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $3.91
-65%$3.91
$1.37TE Connectivity RT424024 Relay
The TE Connectivity RT424024 Relay is a reliable DPDT (2 Form C) power relay engineered for high-density PCB mounting applications. Operating on a 24Vdc coil, this monostable, non-latching relay provides a standard 8A contact rating and is capable of handling switching voltages up to 400Vac. Part of the Schrack RT2 series, the RT424024 is designed with silver nickel (AgNi) contacts, ensuring consistent performance and resistance to welding. With 5kV/10mm isolation between the coil and contacts, it meets rigorous safety standards for industrial control and HVACR automation. The 1.44 kOhm coil resistance and low 400mW power consumption make it an efficient choice for boiler controls, interface modules, and timers. Its flux-proof (RTII) construction allows for reliable through-hole soldering, providing veteran technicians with a durable solution for field repairs and system builds where high-switching capacity and a compact footprint are required.
Key Benefits:- Universal Application Support: Ideal for HVACR boiler controls, garage door systems, and POS automation requiring a 24Vdc power relay.
- High Thermal Stability: Operates efficiently in temperatures ranging from -40°C to 85°C, perfect for demanding industrial environments.
- Superior Insulation: Features 5kV/10mm reinforced insulation between the coil and contacts for enhanced equipment safety.
- High Switching Capacity: Capable of managing a breaking capacity of up to 2000VA with an 8A continuous current rating.
- Terminal Reliability: Standard PCB-THT solder terminals ensure a secure, low-resistance connection on the board.
- What are the primary applications for the TE Connectivity RT424024? This relay is commonly utilized in HVAC interface modules, industrial timers, and general-purpose boiler control boards.
- Can this relay handle high-voltage AC loads? Yes, the RT424024 is rated for switching voltages up to 400Vac, with a 250Vac nominal rating.
- Is the RT424024 pin-compatible with other RT2 series relays? Yes, it follows the standard RT2 series footprint, making it a drop-in replacement for most 8A DPDT PCB relays within that family.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
