TE Connectivity KUP-5A15-24 Relay

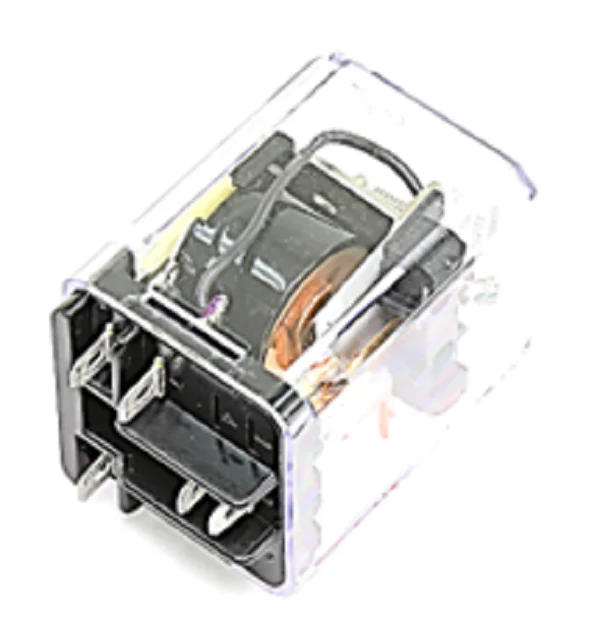

The TE Connectivity KUP-5A15-24 Relay is a heavy-duty, industrial-grade general purpose power relay engineered for precise switching in HVACR and automation control systems. This Potter & Brumfield series component features a Single Pole Double Throw (SPDT) contact configuration, providing a reliable 1-Form-C circuit interface for managing line voltage equipment. Rated for a 10 Amp contact current at 240VAC, this 24Vac coil relay utilizes a monostable magnetic system with an 85-ohm coil resistance, ensuring stable performance during continuous duty cycles. Designed as a panel plug-in enclosed relay, its dust-protected housing shields internal contacts from airborne contaminants common in mechanical rooms. The unit is equipped with versatile 0.187-inch quick-connect terminals that also support solder connections, allowing for direct socket mount installation or discrete wiring. This 24V SPDT relay serves as a direct replacement for various OEM control circuit components in commercial furnaces and industrial air handlers.
Key Benefits for Technicians- Versatile Termination: Features dual-purpose quick-connect and solder terminals for flexible field wiring or secure socket installation.
- High Switching Capacity: Reliable 10A general purpose rating handles inductive motor loads and resistive heating elements with ease.
- Robust Enclosure: The clear polycarbonate enclosed relay case protects against dust, debris, and moisture ingress in demanding HVAC environments.
- Industry Compatibility: Standard KUP series footprint ensures seamless integration into existing relay socket mount setups without hardware modification.
- What is the primary application for this 24Vac relay? It is typically used for sequencing pilot duties, controlling small motor loads, and interfacing low-voltage thermostats with high-voltage HVAC components.
- Does this relay require a specific socket? Yes, it is designed for standard 11-pin or compatible relay sockets, though the terminals allow for direct connector lug or solder piping.
- Can this handle 120V or 240V loads? While the coil is 24Vac, the SPDT contacts are rated for switching loads up to 240VAC at 10 Amps.
