TE Connectivity KUP-14A15-24 Relay

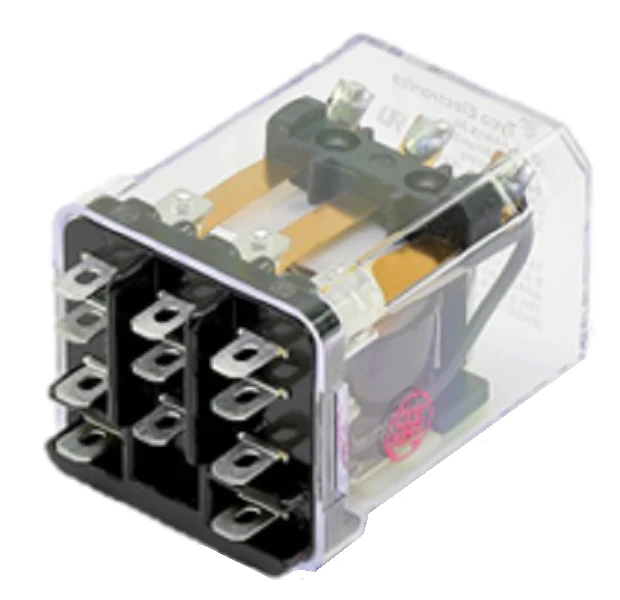

The TE Connectivity KUP-14A15-24 Relay (P&B Brand) is a specialized 3PDT (3 Form C) power relay engineered for heavy-duty switching in industrial control systems, commercial HVAC equipment, and automotive electronics. This 24VAC relay features a monostable, non-latching coil with a 72 Ohm coil resistance, ensuring stable performance for continuous operation loads. Rated for a 10A contact current at 240VAC, the KUP-14A15-24 is housed in a compact, enclosed socket-mount case measuring 39.37 x 35.7 x 50 mm. The versatile terminal footprint supports both 0.187" quick-connect and solder terminations, allowing for rapid field replacement or secure board-level integration. Designed to withstand demanding environments, it maintains operational integrity across a temperature range of -45°C to 45°C. Whether managing motor loads, solenoid valves, or lighting circuits, this general purpose panel plug-in relay provides the multi-pole configuration required for complex logical interlocking and power distribution.
Key Benefits for Contractors
- Multi-Pole Versatility: The 3PDT (3 Form C) arrangement allows for simultaneous control of three separate circuits, simplifying wiring in complex control panels.
- Standardized Mounting: The socket-mount case enables "plug-and-play" replacement, minimizing downtime during system maintenance.
- Flexible Termination: Dual-purpose 0.187" quick-connect/solder terminals accommodate standard spade connectors or permanent soldered connections.
- Rugged Construction: Enclosed design protects internal contacts from dust and debris, extending the service life in harsh mechanical rooms.
- Accurate Coil Specs: Optimized for 24VAC control circuits, ensuring compatibility with standard HVAC transformers and industrial power supplies.
Common Questions
Is the KUP-14A15-24 compatible with standard relay sockets?
Yes, as a general purpose panel plug-in relay, it is designed to fit standard 11-pin or compatible logic sockets, though it can also be wired directly via the quick-connect terminals.
Can this relay be used for DC loads?
While optimized for 24VAC coil input, the 10A contacts are rated for AC loads. Refer to the manufacturer's derating curves if attempting to switch high-voltage DC currents.
What is the primary difference between KUP and KDP series?
The KUP series, like this 7-1393117-9 alias, is the standard industrial enclosed version specifically designed for socket mount and quick-connect applications, whereas other series may vary in mounting footprint and enclosure style.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
