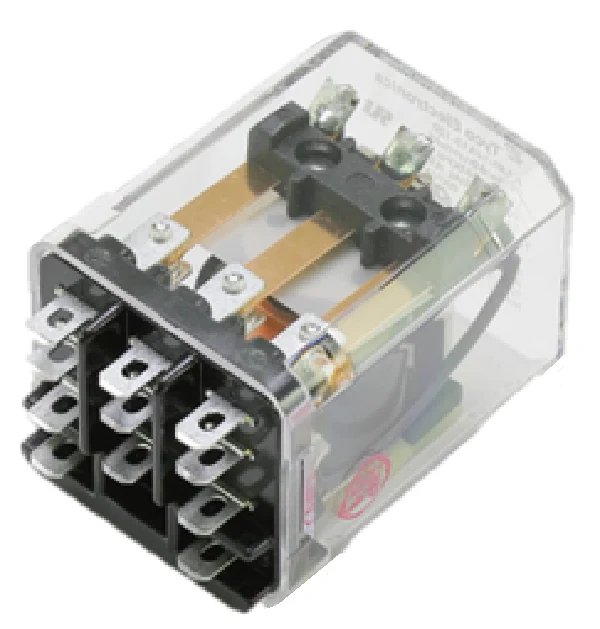

TE Connectivity KUP-14A15-120 Relay
The TE Connectivity KUP-14A15-120 Relay is a rugged, industrial-grade power relay engineered for high-reliability switching in HVACR control circuits and automation panels. Featuring a 3PDT (3 Form C) contact arrangement, this 120VAC coil relay is designed to handle multi-load switching with a 10A contact rating at 240VAC. The Potter & Brumfield KUP series design incorporates silver cadmium oxide contacts to minimize arc erosion and extend mechanical life in demanding inductive load applications. For quick field replacement, the unit utilizes .187" quick-connect/solder terminals and is compatible with standard 11-pin relay sockets, making it a staple for contractors maintaining legacy systems or building new control logic. Its enclosed, clear plastic housing provides essential protection against dust and debris while allowing for easy visual inspection of contact status during system troubleshooting.
Key Benefits:- Versatile Multi-Pole Switching: The 3PDT contact configuration allows for simultaneous control of three separate circuits, streamlining complex wiring.
- Contractor-Grade Durability: Robust 10-amp capacity handles high-inrush currents common in fan motors and solenoid valves.
- Flexible Installation: Features plug-in socket mounting with integrated solder and terminal tabs for secure electrical connections.
- Standardized Compatibility: Drops directly into existing 11-pin bases, ensuring minimal downtime during component replacement.
- Can this relay replace a DPDT model? Yes, if the pinout matches the socket; however, the 3PDT configuration offers an additional pole which can remain unused or be leveraged for indicator logic.
- Is the coil compatible with 110V-125V systems? Yes, the 120VAC coil is designed to operate reliably within the standard North American voltage range.
- Does this relay require a specific socket? It is designed for use with the TE Connectivity 27E121 or similar 11-pin industrial relay sockets.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $45.67
-65%$45.67
$15.98TE Connectivity KUP-14A15-120 Relay
The TE Connectivity KUP-14A15-120 Relay is a rugged, industrial-grade power relay engineered for high-reliability switching in HVACR control circuits and automation panels. Featuring a 3PDT (3 Form C) contact arrangement, this 120VAC coil relay is designed to handle multi-load switching with a 10A contact rating at 240VAC. The Potter & Brumfield KUP series design incorporates silver cadmium oxide contacts to minimize arc erosion and extend mechanical life in demanding inductive load applications. For quick field replacement, the unit utilizes .187" quick-connect/solder terminals and is compatible with standard 11-pin relay sockets, making it a staple for contractors maintaining legacy systems or building new control logic. Its enclosed, clear plastic housing provides essential protection against dust and debris while allowing for easy visual inspection of contact status during system troubleshooting.
Key Benefits:- Versatile Multi-Pole Switching: The 3PDT contact configuration allows for simultaneous control of three separate circuits, streamlining complex wiring.
- Contractor-Grade Durability: Robust 10-amp capacity handles high-inrush currents common in fan motors and solenoid valves.
- Flexible Installation: Features plug-in socket mounting with integrated solder and terminal tabs for secure electrical connections.
- Standardized Compatibility: Drops directly into existing 11-pin bases, ensuring minimal downtime during component replacement.
- Can this relay replace a DPDT model? Yes, if the pinout matches the socket; however, the 3PDT configuration offers an additional pole which can remain unused or be leveraged for indicator logic.
- Is the coil compatible with 110V-125V systems? Yes, the 120VAC coil is designed to operate reliably within the standard North American voltage range.
- Does this relay require a specific socket? It is designed for use with the TE Connectivity 27E121 or similar 11-pin industrial relay sockets.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
