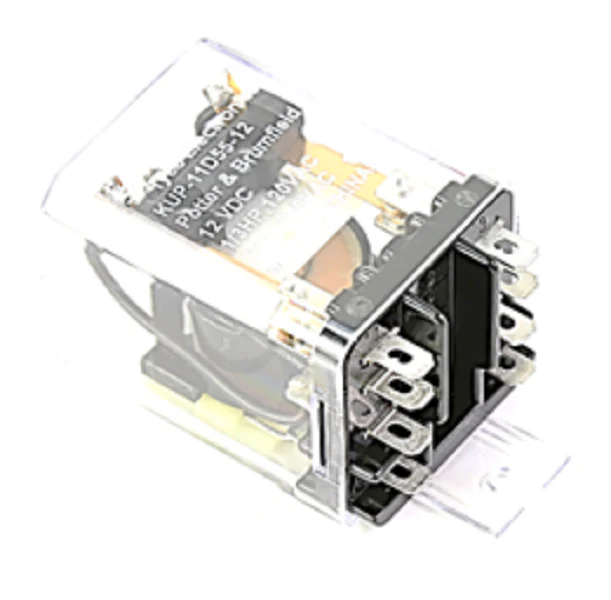

TE Connectivity KUP-11D55-12 Relay
Upgrade or service your control systems with the TE Connectivity KUP-11D55-12 Relay, a professional-grade DPDT 12Vdc relay designed for reliable switching in HVACR and industrial automation. This Potter & Brumfield KUP series relay features a 10Amp general purpose contact rating, making it an ideal choice for managing mid-range electrical loads. Built for durability, the enclosed relay housing protects internal components from dust and environmental debris, while the bracket mount case simplifies chassis installation. Featuring 0.187-inch quick-connect/solder terminals, this 12V DC power relay ensures secure wiring and fast field replacement for contractors. The non-latching monostable coil is engineered for high-duty cycles, providing consistent performance in commercial and industrial general purpose panel plug-in applications without the risk of contact sticking under standard operating conditions.
Key Benefits:- Versatile 2 Form C Contacts: The Double Pole Double Throw (DPDT) configuration allows for flexible switching of two independent circuits.
- High Load Capacity: Rated for up to 10A at 240VAC, balancing power handling with a compact footprint.
- Rugged Enclosure: The enclosed case design extends service life by preventing contamination of the silver cadmium oxide contacts.
- Easy Mounting: Integrated bracket mount enables direct panel installation without specialized sockets.
- Universal Terminals: Dual-purpose quick-connect and solder terminals permit diverse wiring methods for field or factory assembly.
What is the coil voltage requirement for the KUP-11D55-12?
This relay operates on a 12Vdc coil, drawing approximately 120 ohms of resistance, making it compatible with various low-voltage DC control circuits.
Can this relay be used in HVAC applications?
Yes, the TE Connectivity KUP-11D55-12 is frequently used in HVACR systems for motor control, fan sequencing, and signal isolation due to its 10Amp rating and industrial-grade construction.
Does this model require a separate mounting socket?
While it can be socket-mounted, this specific version features a bracket mount case and quick-connect terminals, allowing it to be secured directly to a panel or chassis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
