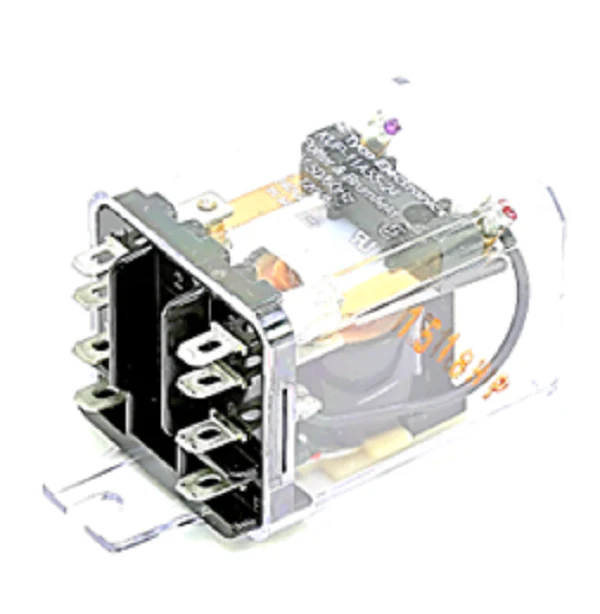

TE Connectivity KUP-11A55-24 Relay
The TE Connectivity KUP-11A55-24 is a robust DPDT general purpose relay engineered for reliable HVAC power switching and industrial control applications. Operating on a 24VAC coil, this double pole double throw relay features 10A contact ratings, making it ideal for managing motor starters, solenoids, and heating elements. The unit is housed in a protective enclosed plug-in relay casing with a bracket mount for secure installation in high-vibration environments. Designed with Quick-connect terminals (0.187in), it also supports solder terminal connections, providing versatility for field technicians. Its panel mount relay configuration ensures easy integration into existing control panels. Whether you are performing a KUP relay replacement or building a new control circuit, this Potter & Brumfield KUP series component delivers the mechanical durability and electrical integrity required for 24 volt AC control systems and heavy-duty cycling.
Key Performance Benefits
- Dual Pole Configuration: The DPDT 10 amp relay design allows for simultaneous control of two separate circuits.
- Versatile Mounting: Includes a plain case with bracket for stable mounting directly to the panel or chassis.
- Standardized Terminals: Features 0.187 quick-connect terminals for fast wiring and reduced labor time.
- Industrial Durability: The enclosed KUP-11A55-24 design protects internal silver cadmium oxide contacts from dust and debris.
Common Technical Questions
What is the maximum contact voltage for this relay?
The contacts are rated for up to 240VAC/28VDC at 10A, depending on the specific resistive or inductive load of the application.
Can I use this relay to replace a 24VDC coil model?
No, the KUP-11A55-24 is specifically designed for 24VAC coil voltage; using a DC coil or different AC voltage will result in failure.
Are the terminals compatible with standard spade connectors?
Yes, the quick-connect terminals accept standard 0.187-inch female disconnects or can be directly soldered for more permanent installations.
