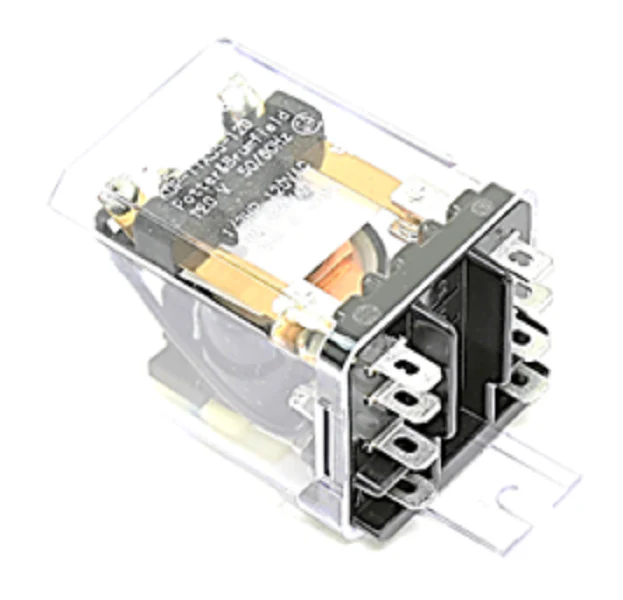

TE Connectivity KUP-11A55-120 Relay
The TE Connectivity KUP-11A55-120 is a heavy-duty DPDT (2 Form C) general-purpose plug-in relay designed for reliable switching in HVACR control circuits and industrial automation. Operating on a 120VAC coil, this 10-amp panel-mount relay features a rugged clear plastic enclosure that protects internal contacts from environmental contaminants while allowing for visual status inspection. The bracket mount case and .187" quick-connect terminals (which also support solder connections) facilitate rapid installation and secure wiring in high-vibration applications. With its Silver Cadmium Oxide (AgCdO) contacts, the KUP-11A55-120 handles inductive loads efficiently, making it a standard choice for motor starting, solenoid control, and sequence-of-operation logic. This Potter & Brumfield KUP series relay is engineered for high-cycle mechanical life, ensuring consistent double-pole double-throw switching performance across diverse 120-volt control transformer circuits.
Key Benefits for Technicians- Versatile Mounting: Integrated flange bracket allows for direct chassis or panel mounting without the need for additional sockets.
- Reliable Contact Logic: DPDT configuration enables simultaneous control of two separate circuits or polarity reversal.
- Fast Wire Termination: Multi-functional terminals accept standard push-on lugs or direct soldering for permanent installations.
- High Load Capacity: Rated for 10A at 240VAC, meeting the requirements for most fan motors and heavy-duty contactor coils.
- Visual Diagnostics: Enclosed design protects mechanics while staying transparent for quick troubleshooting of contact movement.
What is the maximum current rating for the KUP-11A55-120?
This relay is rated for 10 Amps at 240VAC or 28VDC, making it suitable for general-purpose pilot duty and resistive loads.
Can this relay be used with a standard 8-pin or 11-pin socket?
While the KUP series often fits sockets, this specific model features a bracket mount case and quick-connect terminals intended for direct panel mounting and secondary wiring rather than base-plugging.
What are the coil specifications for the 120VAC model?
The coil has a nominal voltage of 120VAC with a resistance of approximately 2,250 Ohms, drawing roughly 17.5mA to 18mA during steady-state operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
