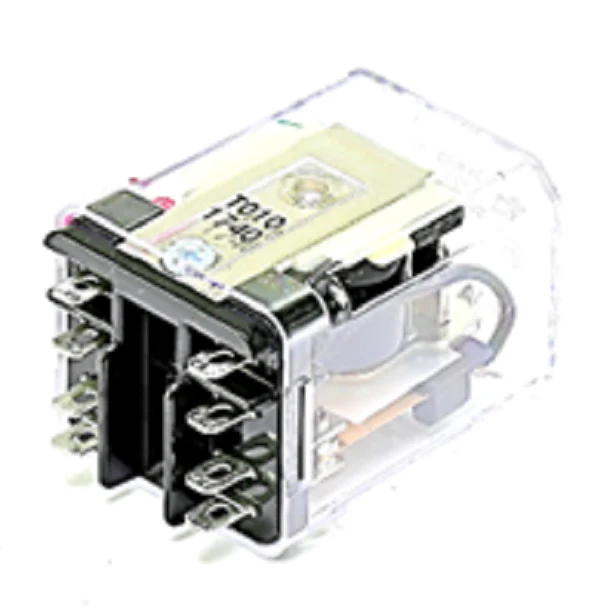

TE Connectivity KUP-11A15-120 Relay
Navigate complex HVACR control logic with the TE Connectivity KUP-11A15-120, a professional-grade DPDT industrial relay engineered for heavy-duty switching cycles. This Potter & Brumfield series relay is a staple for technicians servicing commercial air handlers, refrigeration racks, and boiler control panels. Operating on a 120V AC coil, the KUP-11A15-120 features a 10-amp contact rating capable of managing multi-phase loads or pilot duty applications with precision. Its DPDT (2 Form C) configuration provides versatile pole switching, while the Silver Cadmium Oxide (AgCdO) contacts ensure long-term arc resistance and reliable conductivity under varying electrical stresses. Designed for maximum uptime, the enclosed plug-in design protects internal components from dust and debris, fitting seamlessly into standard 8-pin or 11-pin sockets. Whether you are performing a relay replacement in a legacy system or building out a new control circuit, this socket-mount power relay provides the mechanical endurance required for 24/7 environments.
Key Benefits:
- Versatile Termination: Equipped with 0.187-inch quick-connect/solder terminals for flexible wiring in panel-mount or socket-based installations.
- Thermal Stability: Features Class B coil insulation and an operating temperature range of -45°C to 55°C, ideal for mechanical rooms and refrigeration units.
- Robust Switching: The 10A contact capacity supports both resistive and inductive loads, maintaining high-efficiency electrical switching across HVACR applications.
- Compact Protection: The enclosed plain case design prevents accidental contact and contamination, securing the electromechanical relay mechanism.
Common Questions:
Is the KUP-11A15-120 compatible with my existing 120V control circuit?
Yes, this 120V AC relay is designed for standard 120V control voltage systems common in HVACR equipment. For a proper fit, verify the terminal layout and contact configuration match your DPDT switching requirements.
Can I use this relay for both inductive and resistive loads?
The KUP-11A15-120 is rated for 10A general-purpose use. Its AgCdO contacts are highly capable of handling the inrush current associated with inductive loads like small motors and solenoids.
What is the primary advantage of the socket-mount design?
The plug-in relay design allows for "hot-swapping" or quick field replacements without the need to de-solder connections, which is critical for reducing downtime in industrial control panels.
