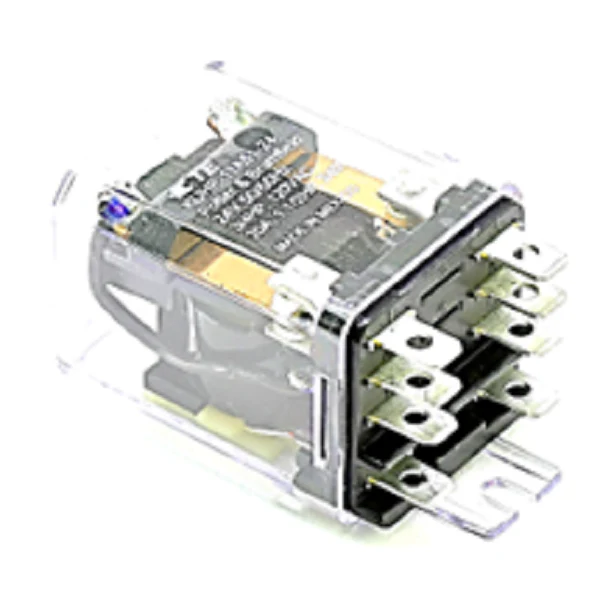

TE Connectivity KUHP-11A51-24 Relay
When the job requires a high-capacity power control solution, the TE Connectivity KUHP-11A51-24 is a standard-setting choice for commercial HVACR and industrial panels. This DPDT 24Vac relay is engineered for mid-to-high power applications, supporting a 20Amp general purpose switching capacity. Known by technicians as the Potter & Brumfield KUHP series, this unit features a monostable coil with 72 Ohm coil resistance, ensuring consistent performance in high-duty environments. The 2 Form C contact arrangement utilizes Silver Cadmium Oxide (AgCdO) contacts, providing the robust arc resistance necessary for cycling heavy inductive loads. For rapid field installation, the relay is housed in a clear polycarbonate enclosed bracket mount case and features standard 0.250-inch quick-connect/solder terminals. Whether you are replacing a failed panel mount relay or retrofitting an existing controller, this 24VAC power relay delivers the mechanical life and dielectric strength required to keep equipment operational without premature failure.
Key Benefits:- Heavy-Duty Switching: Rated for up to 20A at 240VAC, making it ideal for fan motor startups and resistive heaters.
- Universal Compatibility: The quick-connect terminals and bracket-mount design allow for seamless integration into most standard HVAC panels.
- Enhanced Safety: UL Class B coil insulation and an enclosed relay design protect internal components from dust and debris.
- Thermal Stability: Operating range from -45°C to 45°C ensures reliable switching in both conditioned and unconditioned spaces.
- Can I use this relay for both AC and DC switching? While the coil is rated for 24Vac, the contacts are rated for both 240VAC and 28VDC, though performance varies with inductive DC loads.
- Is this a direct replacement for other P&B KU series relays? The KUHP series is a "high power" version of the standard KU series. Always verify physical clearance for the bracket mount case.
- Does this relay require a specific terminal orientation? No, the 0.250" terminals are non-polarized and accept standard female spade connectors for fast field wiring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
