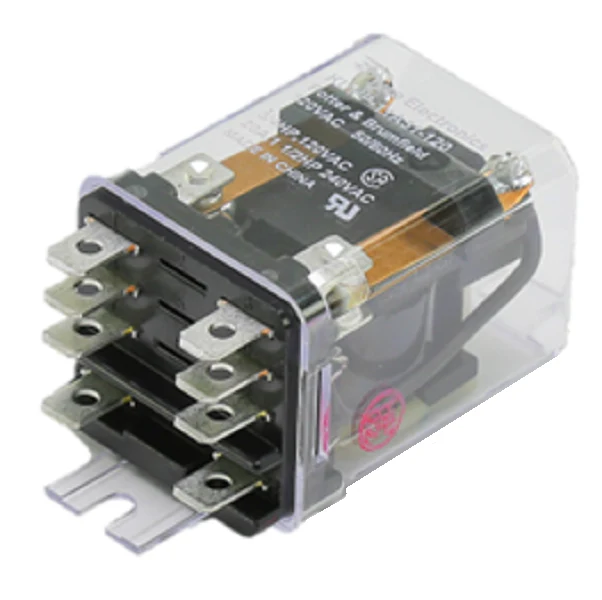

TE Connectivity KUHP-11A51-120 Relay
The TE Connectivity KUHP-11A51-120 Relay is a heavy-duty general purpose panel plug-in relay engineered for demanding HVACR and industrial applications. This Potter & Brumfield series component features a DPDT (2 Form C) contact arrangement capable of switching up to 20Amp at 240Vac. Designed with a 120Vac coil, this enclosed relay provides reliable performance in high-power circuits where environmental protection is necessary. The unit facilitates rapid installation via 0.250-inch quick-connect/solder terminals and a secure bracket mount case. This non-latching power relay utilizes silver cadmium oxide (AgCdO) contacts to minimize arcing and ensure long-term electrical stability. It is built to meet VDE space requirements with UL Class B coil insulation, making it a standard replacement for various commercial HVAC motor controls and lighting systems. Technicians rely on the KUHP series for its 3750Vrms dielectric strength and robust construction in field-service environments.
Key Benefits- High-capacity 20Amp switching handles heavy inductive loads common in air conditioning and refrigeration systems.
- The DPDT contact configuration allows for simultaneous control of two separate power circuits, increasing wiring flexibility.
- Integrated bracket mount case and quick-connect terminals reduce labor time during panel assembly or field replacement.
- UL Class B insulation and an enclosed design ensure reliable operation in temperatures ranging from -45°C to 45°C.
- Commonly utilized as a high-performance substitute for standard 120Vac general purpose relays in industrial machinery.
Is the KUHP-11A51-120 suitable for motor starting applications?
Yes, this 20A power relay is specifically designed for industrial loads and motor control where high inrush current is present, provided it stays within the contact rating.
Can I use solder if I don't have quick-connect terminals available?
The terminals on this TE Connectivity relay are dual-purpose, accommodating either standard 0.250" female disconnects or direct solder connections for permanent installations.
What is the difference between this and the standard KUP series?
The "H" in the KUHP-11A51-120 designation signifies a higher power rating, offering increased current capacity compared to the standard KUP models while maintaining a similar physical footprint.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
