TE Connectivity KRPA-11DG-24 Relay

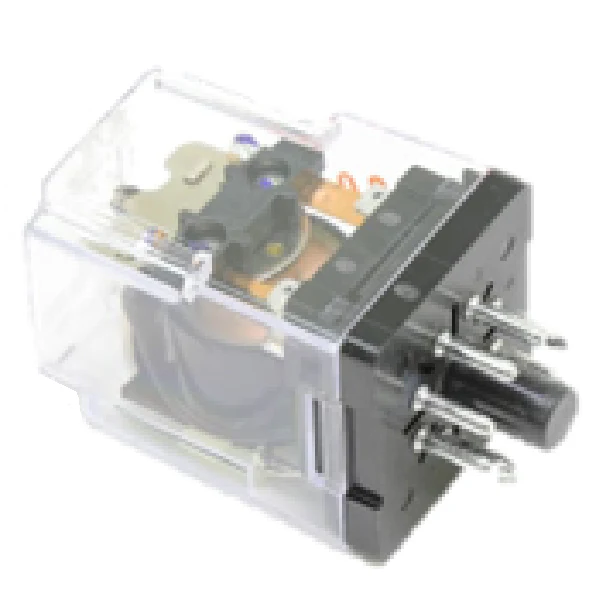

The TE Connectivity KRPA-11DG-24 Relay is a rugged DPDT power relay engineered for high-reliability switching in industrial automation and HVACR control circuits. This 24VDC octal relay features a 2-pole, 10A contact rating, utilizing silver cadmium oxide (AgCdO) contacts to ensure superior arc resistance and mechanical longevity. Designed for frequent cycling in demanding environments, the Potter & Brumfield KRPA series provides a monostable DC coil system with a 472-ohm resistance, optimized for general purpose panel plug-in applications. Its 8-pin octal base ensures a secure interface with standard 8-pin octal sockets, simplifying field replacements and minimizing downtime. Technical specifications include a Class B coil insulation rating and 240VAC maximum switching voltage, making it a staple for baggage handling, lighting control, and motor starting. This industrial electromechanical relay is enclosed in a clear polycarbonate dust cover, allowing for visual inspection of contact status while protecting internal components from debris.
Key Benefits for HVACR Applications- High Current Capacity: 10A DPDT contacts are ideal for managing small motors, fans, and solenoid valves.
- Standardized Mounting: 8-pin octal plug-in termination allows for quick "drop-in" replacement without rewiring control panels.
- Durable Construction: Silver cadmium oxide contact material provides excellent resistance to welding and pitting under inductive loads.
- Environmental Protection: The transparent dust cover guards against workplace contaminants while facilitating easy troubleshooting.
- Proven Reliability: Rated for over 100,000 electrical operations at full load and 10 million mechanical operations.
- What is the primary difference between the KRPA and KRP series? The KRPA is the modern, enclosed version of the legacy KRP series, offering identical pinouts but improved environmental protection.
- Can this relay be used with an AC control signal? No, the KRPA-11DG-24 is strictly for 24VDC coil circuits. For 24VAC systems, use the KRPA-11AG-24.
- Is a mounting socket included? This is the relay only; standard 8-pin octal sockets (such as the 27E891 or 27E122) must be purchased separately.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
