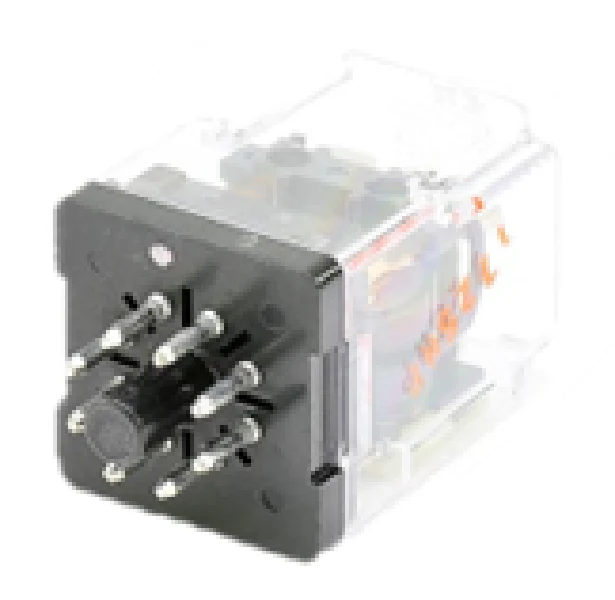

TE Connectivity KRPA-11AN-24 Relay
The TE Connectivity KRPA-11AN-24 Relay is a heavy-duty DPDT (2 Form C) general-purpose power relay designed for reliable switching in HVACR control systems. Engineered with a 24VAC coil and a 10A contact rating, this 8-pin octal plug-in relay is a standard replacement for industrial panels and motor control circuits. The enclosed transparent dust cover protects the silver cadmium oxide contacts from environmental contaminants, while the integrated neon lamp indicator allows for immediate visual verification of coil power status—a critical feature for rapid troubleshooting in the field. This unit is specifically built for panel mounting via standard octal sockets, ensuring a secure electrical relay interface that withstands continuous duty cycles. By utilizing Potter & Brumfield engineering standards, the KRPA-11AN-24 provides consistent switching capacity for inductive loads, making it a staple for technicians managing 24Vac power relay applications.
Key Benefits for Technicians- Enhanced Diagnostics: The built-in lamp indicator reduces downtime by providing instant status of the coil activation.
- Industry Standard Layout: Designed for an 8-pin octal socket, ensuring seamless relay compatibility with existing control architectures.
- Durable Contacts: Featuring 10A silver-plated contacts designed to handle the inrush current of fans, small motors, and solenoid valves.
- Protection: The clear polycarbonate housing maintains technical integrity in dusty or oily mechanical room environments.
What is the coil voltage for the KRPA-11AN-24?
This specific model operates on a nominal 24Vac coil, making it compatible with standard HVAC step-down transformers.
Can I use this relay for both AC and DC loads?
While the coil is AC-driven, the DPDT contacts are rated for up to 10A at 240VAC or 28VDC, providing versatile switching across various power stages.
How do I verify the pinout configuration?
The unit follows the standard double-pole double-throw octal pinout, typically used in 11-pin or 8-pin socket mounts for industrial automation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
