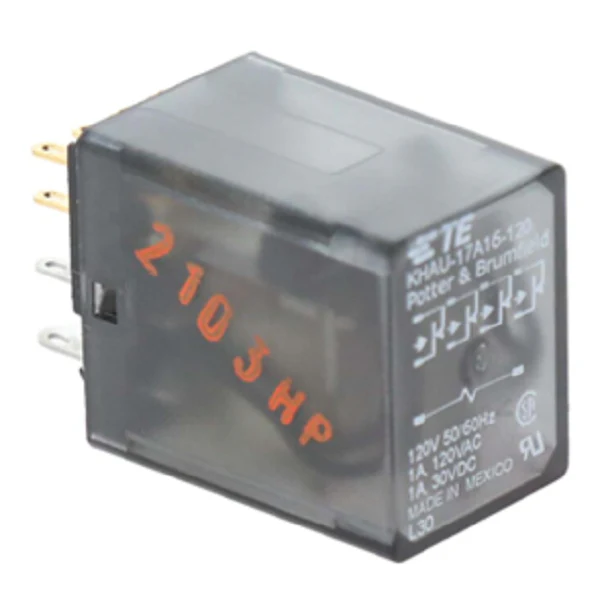

TE Connectivity KHAU-17A16-120 Relay
The TE Connectivity KHAU-17A16-120 is a dependable 4PDT general purpose relay engineered for heavy-duty switching in industrial and HVAC control circuits. Operating on a 120VAC coil, this KH-series relay features a 4 Form C contact configuration with a 1A rating, making it an ideal choice for multi-pole signals and low-level logic switching. The unit is housed in a clear polycarbonate dust cover to protect internal components from ambient contaminants while allowing for easy visual inspection of the contact state. Designed for versatile installation, it utilizes solder terminals and is compatible with standard socket mounting configurations. Its bifurcated crossbar contacts ensure high contact reliability even in demanding environments. This electro-mechanical relay is a staple for contractors replacing aging components in control panels where precision 4-pole double throw switching is required for sequenced operations.
Key Benefits- Versatile 4PDT Configuration: Manages four independent circuits simultaneously, perfect for complex interlocking logic.
- Enhanced Durability: The polycarbonate housing prevents debris ingress, extending the service life of the 120V relay.
- Reliable Signal Transfer: Features gold-plated contacts optimized for low-level signal integrity.
- Simplified Maintenance: Standard plug-in relay design allows for rapid field replacement without re-wiring the entire socket.
Is the KHAU-17A16-120 suitable for high-amperage motor loads?
No, this specific model is rated for 1 Amp general purpose loads. It is designed for signal switching and pilot duty rather than direct high-current motor control.
Can this relay be used with a standard DIN rail socket?
Yes, provided the socket is designed for the KH-series 14-pin configuration. Ensure your relay socket matches the solder/plug-in terminal layout.
Does this unit include an LED indicator for coil status?
The 17A16-120 is a standard mechanical version; while the clear cover allows you to see the armature move, it does not feature an internal status LED.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $97.84
-65%$97.84
$34.24TE Connectivity KHAU-17A16-120 Relay
