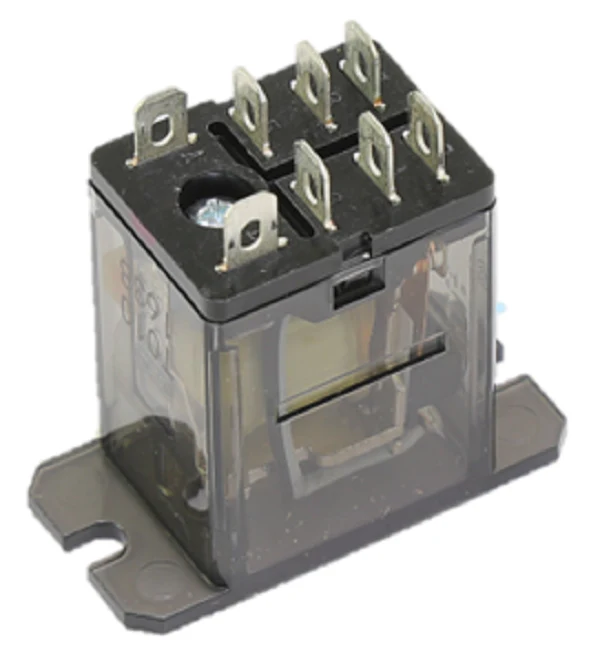

TE Connectivity K10P-11AT5-120 Relay
The TE Connectivity K10P-11AT5-120 Relay is a heavy-duty general purpose miniature relay engineered for reliable switching in commercial HVACR and industrial automation systems. This Potter & Brumfield series component features a double-pole double-throw (DPDT) contact arrangement, allowing for versatile circuit control of up to 15 Amp resistive loads at 120Vac. Built for durability in demanding environments, it utilizes Silver Cadmium Oxide (AgCdO) contacts and an UL coil insulation class B system to maintain electrical integrity under thermal stress.
Field technicians will appreciate the 4.75mm (0.187-inch) quick-connect/solder terminals and the integrated mounting bracket on end of cover, which simplifies both panel-mount and chassis-mount installations. The polycarbonate (smoke color) cover provides environmental protection while allowing for a visual check of the internal mechanics. Whether you are troubleshooting air handlers or motor drive controls, this 120V coil power relay offers the high-performance switching required to keep critical infrastructure operational.
Key Benefits:- 15A High-Capacity Switching: Robust DPDT configuration capable of handling inductive and motor loads common in HVACR applications.
- Simplified Installation: Features dual-purpose quick-connect terminals and a factory-installed mounting bracket for secure hardware integration.
- Thermal Resilience: Designed with Class B insulation to withstand operating temperatures ranging from -45°C to 70°C.
- Potter & Brumfield Reliability: Industry-standard K10 series construction ensures long-term mechanical life and consistent pull-in voltages.
- What is the maximum contact rating for this relay? This general purpose relay is rated for 15 Amps at 120Vac and 30Vdc, making it suitable for medium power industrial controls.
- Does this model include a mounting flange? Yes, the K10P-11AT5-120 comes with a sturdy mounting bracket on end of cover for direct panel installation.
- Can I use this for motor control? Absolutely. The Silver Cadmium Oxide contacts are specifically designed to handle the inrush current associated with motors and inductive loads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $28.19
-65%$28.19
$9.87TE Connectivity K10P-11AT5-120 Relay
The TE Connectivity K10P-11AT5-120 Relay is a heavy-duty general purpose miniature relay engineered for reliable switching in commercial HVACR and industrial automation systems. This Potter & Brumfield series component features a double-pole double-throw (DPDT) contact arrangement, allowing for versatile circuit control of up to 15 Amp resistive loads at 120Vac. Built for durability in demanding environments, it utilizes Silver Cadmium Oxide (AgCdO) contacts and an UL coil insulation class B system to maintain electrical integrity under thermal stress.
Field technicians will appreciate the 4.75mm (0.187-inch) quick-connect/solder terminals and the integrated mounting bracket on end of cover, which simplifies both panel-mount and chassis-mount installations. The polycarbonate (smoke color) cover provides environmental protection while allowing for a visual check of the internal mechanics. Whether you are troubleshooting air handlers or motor drive controls, this 120V coil power relay offers the high-performance switching required to keep critical infrastructure operational.
Key Benefits:- 15A High-Capacity Switching: Robust DPDT configuration capable of handling inductive and motor loads common in HVACR applications.
- Simplified Installation: Features dual-purpose quick-connect terminals and a factory-installed mounting bracket for secure hardware integration.
- Thermal Resilience: Designed with Class B insulation to withstand operating temperatures ranging from -45°C to 70°C.
- Potter & Brumfield Reliability: Industry-standard K10 series construction ensures long-term mechanical life and consistent pull-in voltages.
- What is the maximum contact rating for this relay? This general purpose relay is rated for 15 Amps at 120Vac and 30Vdc, making it suitable for medium power industrial controls.
- Does this model include a mounting flange? Yes, the K10P-11AT5-120 comes with a sturdy mounting bracket on end of cover for direct panel installation.
- Can I use this for motor control? Absolutely. The Silver Cadmium Oxide contacts are specifically designed to handle the inrush current associated with motors and inductive loads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
