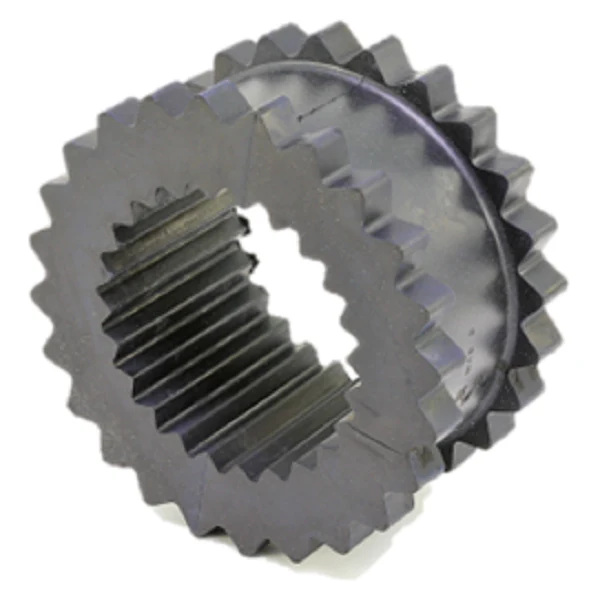

TB Woods 10JES Insert
The TB Woods 10JES is a high-performance EPDM split sleeve insert designed for Sure-Flex Plus size 10 couplings. This elastomeric coupling element is the updated direct cross-reference for the 10JE, offering a 30% increase in torque capacity reaching up to 3,735 in-lb. Engineered for shaft-to-shaft power transmission, the 10JES facilitates a 4-way flexing action that effectively absorbs heavy shock, vibration, and parallel misalignment up to 0.025 inches.
The one-piece split design allows for rapid installation and replacement without moving connected hubs or equipment, significantly reducing labor on centrifugal pumps, motors, and fans. Operating within a temperature range of -30°F to +275°F, this Sure-Flex Plus sleeve provides durable service in diverse industrial environments. With a maximum speed of 3,600 RPM and high torsional flexibility (approximately 21° wind-up at rated torque), the 10JES insert ensures smooth torque transmission while protecting critical drivetrain components from premature wear.
Key Benefits- 30% Higher Torque: Upgraded EPDM material increases power density, often allowing the use of smaller coupling sizes.
- Shock & Vibration Dampening: The elastomeric material attenuates torsional shock, protecting bearings and seals.
- Simplified Installation: The split sleeve design (10JES) enables easy wrap-around fitting on existing 10J or 10S flanges.
- No Lubrication Required: Eliminates ongoing maintenance needs for a cleaner, cost-effective operation.
- Cross-Compatibility: 100% interchangeable with industry-standard 10JE inserts and competitive size 10 flexible couplings.
- Can the 10JES replace a solid 10JE insert? Yes, the 10JES is the direct split-type replacement for the solid 10JE; the "S" denotes the split construction for easier field service.
- What is the maximum angular misalignment for this part? The 10JES is rated for up to 1° of angular misalignment when properly seated in compatible flanges.
- Is this sleeve resistant to chemicals? EPDM construction provides excellent resistance to water and heat, though it should be shielded from oil and petroleum-based lubricants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
