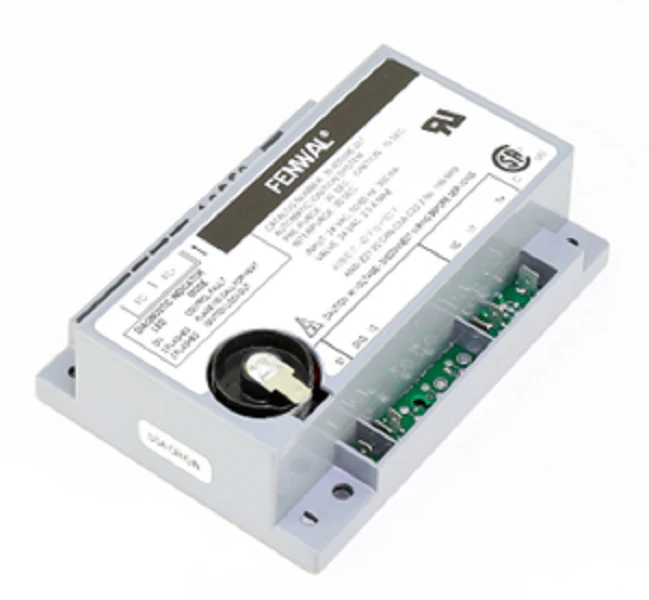

Superior Radiant CE005 DSI Module
The Superior Radiant CE005 DSI Module (CCA-H4035A) is a mission-critical Direct Spark Ignition control assembly engineered for high-performance gas-fired infrared heaters. This OEM ignition control module, often cross-referenced as part 915-227, manages the automatic ignition system and provides continuous flame monitoring to ensure safe burner operation. Designed for heavy-duty field use, it operates on a 24V AC, 50/60 Hz input and supports valve loads up to 2.0A. With a rapid flame failure response time of 0.8 seconds and an industrial-grade operating range of -40°F to +160°F, this module provides the dependable timing and spark energy required to eliminate lockout issues in demanding environments. This Superior Radiant replacement part is the standard for technicians servicing SRP radiant tube heaters where precise 3/16-inch spark gaps and reliable 24V circuitry are essential for maintaining system uptime and combustion efficiency.
Key Benefits for Technicians:- Direct OEM Replacement: Ensures seamless mechanical and electrical compatibility with Superior Radiant heating systems, reducing troubleshooting time.
- High-Speed Flame Sensing: The 0.8-second flame failure response prevents raw gas accumulation and improves site safety.
- Extreme Temperature Resilience: Rated for operation down to -40°F, making it ideal for unconditioned warehouse or hangars.
- Integrated Diagnostic Logic: Simplifies the identification of ignition failures versus flame sensing issues.
- Precise Voltage Control: Optimized for 24V AC circuits to provide consistent spark intensity and reliable gas valve actuation.
How do I verify if the CE005 module is faulty?
Confirm 24V AC at the input terminals. If the module receives power but fails to generate a spark across the 3/16-inch gap or fails to energize the gas valve after the pre-purge cycle, the internal circuitry or transformer may be compromised.
Can this module be used with other radiant heater brands?
While the electrical specifications are standard 24V AC, this module is specifically tuned for Superior Radiant burner assemblies. Always verify the part number 915-227 or CCA-H4035A to ensure proper timing and safety interlock compatibility.
What causes frequent flame failure responses?
Outside of a faulty module, check for contaminated flame rods, improper grounding, or a misaligned spark gap. This module requires a clean signal to maintain the 0.8-second monitoring threshold.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
