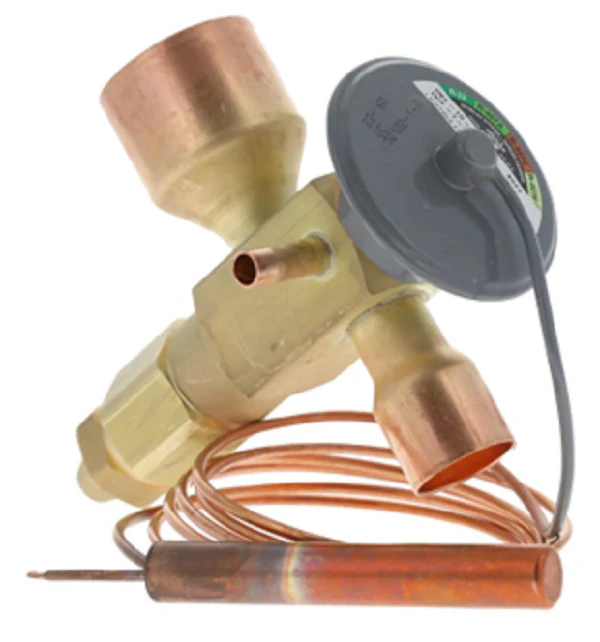

Sporlan Controls 124363 TXV
The Sporlan Controls 124363 is a high-capacity 10-ton thermostatic expansion valve engineered for precise refrigerant metering in commercial R22 systems. As a veteran-grade HVAC expansion valve, this O-series style component features 7/8" x 1-3/8" ODF solder connections, ensuring a secure, leak-proof fit for high-tonnage evaporators. The 124363 utilizes a stainless steel diaphragm and heavy-duty brass body to maintain consistent superheat control, effectively preventing compressor slugging and evaporator starvation. Designed for demanding applications, this Sporlan TXV modulates flow based on load requirements, optimizing heat transfer efficiency across the secondary side. For technicians servicing legacy R22 hardware, this commercial refrigeration TXV provides the reliability needed for 120,000 BTU/hr systems. The 124363 is a direct-replacement OEM thermal expansion valve that prioritizes system stability and long-term mechanical integrity in medium to large-scale air conditioning setups.
Technical Key Benefits
- Precision Superheat Regulation: High-grade power assembly ensures stable evaporator temperatures and protects the compressor from liquid floodback.
- Robust ODF Connections: 7/8" inlet and 1-3/8" outlet ODF ports allow for standard brazing techniques without the need for additional adapters.
- R22 Compatibility: Specifically calibrated for R22 refrigerant, making it a critical component for maintaining legacy commercial HVAC infrastructure.
- 10-Ton Capacity: Specifically rated for 10-ton cooling systems, providing the necessary mass flow rate for large-scale air handlers and chillers.
- Field-Proven Reliability: Features a stainless steel element designed to withstand pressure surges and thermal cycling in extreme environments.
Common Questions & Technical Insights
Can this TXV be used with R407C dry-charge systems?
While R407C has similar pressure-temperature characteristics to R22, the Sporlan 124363 is factory-charged and calibrated specifically for R22. Using it with R407C may require significant field adjustments to the superheat setting to ensure proper evaporator performance.
What is the primary benefit of the ODF solder connections?
The ODF (Over Design Female) connections allow the technician to sweat the copper tubing directly into the valve body, reducing potential leak points compared to flare fittings in high-vibration commercial applications.
Why is my 10-ton system starving with this valve installed?
Always verify that the external equalizer line is properly connected to the suction line after the bulb. If the thermostatic expansion valve is not sensing the evaporator outlet pressure correctly, it cannot modulate the refrigerant flow accurately for a 10-ton load.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
