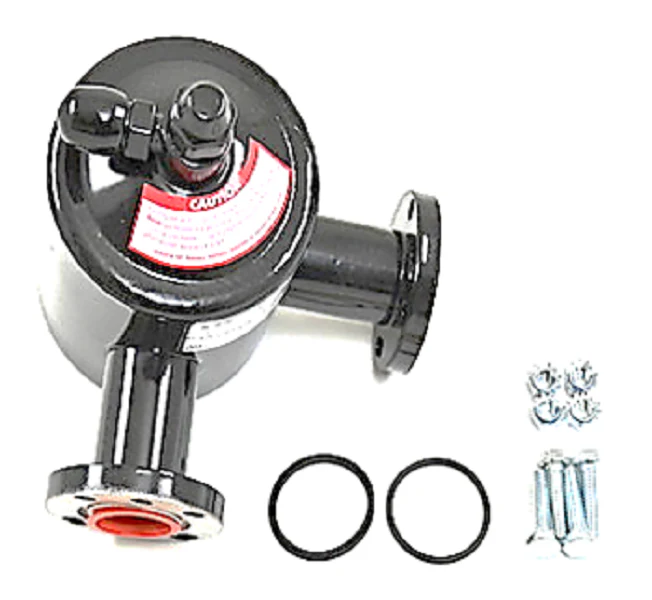

Sporlan 960083P Control
For veteran contractors managing multi-compressor racks, the Sporlan 960083P OL60CH Oil Level Control provides the precise mechanical regulation required to maintain manufacturer-specified oil levels. This float-type regulator is engineered to automatically meter oil into the compressor crankcase as levels drop, preventing oil starvation and protecting internal components from premature wear. Designed for high-performance refrigeration and air conditioning systems, the OL60CH remains externally adjustable between 1/4 and 1/2 sight glass, allowing technicians to fine-tune the crankcase oil level for specific operational demands. Integrated with a 7-bolt universal mounting flange, this unit ensures seamless compressor compatibility across major brands like Copeland and Bitzer, utilizing a 3-bolt (1-7/8 inch) or 4-bolt (50mm) configuration. With a maximum rated pressure (MRP) of 650 psi and a differential range of 5 to 90 psi, this low-pressure oil management component is a critical failed-part replacement for maintaining system reliability and avoiding high-velocity oil slugs or compressor short-cycling.
Key Benefits- Precise Oil Regulation: Maintains a consistent minimum oil level to prevent lubrication failure.
- Universal Flange Design: Features a 7-bolt mounting pattern for high compatibility with various compressor models.
- External Adjustability: Allows for quick setting changes between 1/4 and 1/2 sight glass without breaking system seals.
- High Pressure Durability: Rated for a 650 psi maximum operating pressure, suitable for modern high-pressure refrigerants.
- Debris Protection: Equipped with an internal 100 mesh inlet screen to protect the needle valve from system contaminants.
Can the OL60CH replace older Sporlan oil controls?
Yes, the OL-60 series is designed as a simplified, high-performance replacement for the OL-1 and OL-2 series oil level controls.
Is an equalizer fitting required for this model?
The OL60CH can be used in interconnected compressor systems. If an equalizer line is not used in your specific rack configuration, the fitting must be securely capped to prevent leaks.
Why is the oil level in the sight glass not matching my settings?
Ensure the oil level control is perfectly level with the compressor; even slight tilting can cause false readings in the sight glass. Also, check for a plugged oil filter or issues with the differential check valve.
