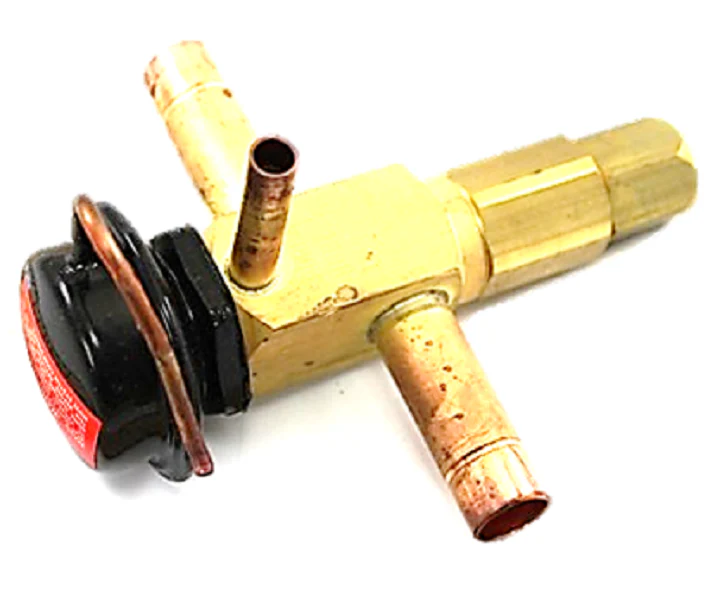

Sporlan 904068P Valve
The Sporlan 904068P is a high-performance HGBE-5 discharge bypass valve designed specifically for R-410A systems requiring precise compressor capacity control. As an externally equalized modulating valve, it responds to changes in suction pressure to maintain minimum evaporating pressure during low-load conditions. This is critical for preventing coil icing and avoiding operation below the compressor’s designed suction limits. Built with a heavy-duty brass body and 1/2" ODF extended copper solder connections, this valve facilitates a reliable, leak-free installation in demanding commercial and industrial environments.
The 95/115 PSI range allows for accurate field adjustment to match specific system requirements, ensuring smooth modulation without the short-cycling issues often seen in smaller equipment. By bypassing hot discharge gas to the low side, the 904068P maintains stable evaporator temperatures and protects the compressor from oil return problems and liquid slugging. Its 1/2" port size and direct-acting design provide the responsiveness needed for modern refrigeration and air conditioning configurations where consistent mass flow and pressure differentials are paramount for longevity.
Key Benefits:- Precise Pressure Regulation: Features an adjustable range of 95 to 115 PSIG, allowing technicians to dial in the exact setpoint needed for R-410A applications.
- Superior System Protection: Actively prevents evaporator coil icing and protects compressors from operating at dangerously low suction pressures during reduced loads.
- Serviceable Construction: Durable brass body with copper ODF connections ensures maximum compatibility and streamlined integration into the refrigerant piping.
- Modulating Capacity Control: Offers an economical alternative to mechanical unloaders, providing continuous modulation for better humidity control and equipment performance.
- How is the pressure setting adjusted on this HGBE-5 valve? The valve is adjusted by rotating the pilot screw; clockwise increases the pressure setting, while counter-clockwise decreases it. Proper adjustment should be verified under low-load conditions.
- Where should the external equalizer line be connected? To ensure accurate sensing, the 1/4" external equalizer line should be connected to the suction line downstream of the evaporator, typically near the TXV equalizer connection.
- Can this valve be used for hot gas bypass to the suction line or the evaporator inlet? Yes, it is suitable for both applications, though bypassing to the evaporator inlet with a distributor is often preferred to utilize the TEV as a desuperheating valve.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
