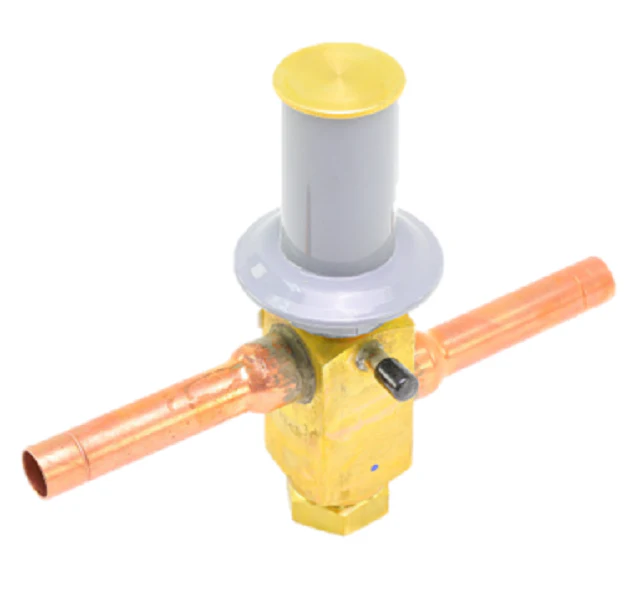

Sporlan 903574P Valve
The Sporlan ADRHE-6 is a pilot-operated discharge bypass valve designed to provide precise capacity control for refrigeration and air conditioning systems. Engineered for hot gas bypass applications, this valve modulates to maintain a minimum suction pressure, preventing compressor short-cycling and evaporator icing during low-load conditions. Featuring a 5/8" ODF solder connection, the ADRHE-6 offers a 0 to 80 PSI adjustment range, allowing technicians to fine-tune the evaporator pressure control based on specific field requirements. The pilot-operated design ensures high sensitivity and stable operation across varying load profiles. This HVAC compressor capacity control solution is essential for systems requiring tight temperature tolerances and consistent humidity management. Built with Sporlan’s signature durability, the ADRHE-6 0/80# bypass valve utilizes a modulating refrigerant valve mechanism to bypass hot gas from the discharge line directly to the evaporator inlet, ensuring reliable performance in demanding commercial environments.
Technical Key Benefits- Precision Capacity Modulation: Maintains stable suction pressure to protect the compressor from liquid slugging and excessive cycling.
- Broad Adjustment Range: The 0-80 PSI setting allows for versatile deployment across various medium and high-temperature applications.
- Optimized System Balance: Effectively handles unloading requirements, ensuring the evaporator remains active even during reduced load periods.
- Durable Construction: Features high-grade materials compatible with standard HCFC and HFC refrigerants.
What is the primary function of the Sporlan ADRHE series?
The ADRHE series serves as a pilot-operated discharge bypass valve that opens on a decrease in suction pressure to maintain a predetermined minimum pressure level in the evaporator.
How do I adjust the 0/80# pressure setting?
Technicians can adjust the setting by removing the cap and turning the adjustment screw; clockwise increases the pressure setting (opens the valve sooner), while counter-clockwise decreases it.
Is this valve compatible with modern R-410A or R-404A systems?
Yes, the ADRHE-6 is compatible with most common refrigerants, provided the operating pressures fall within the valve's 0-80 PSI adjustment range and maximum rated pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
