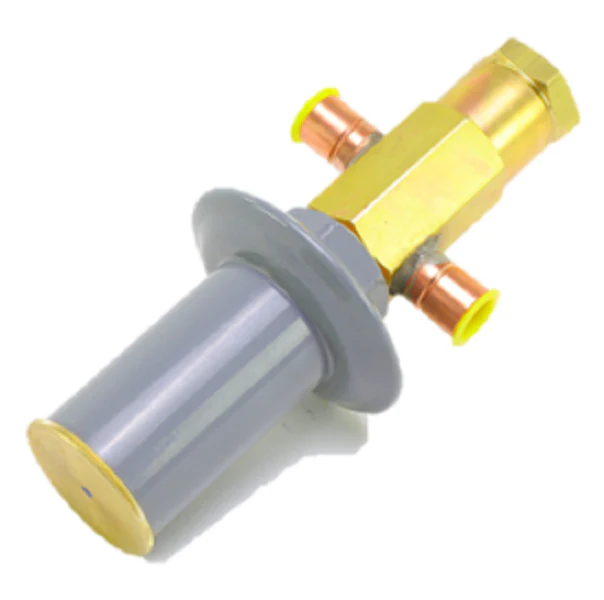

Sporlan 903364P Valve
The Sporlan 903364P, designated as model ADRS-2, is a premium discharge bypass valve engineered to maintain precise evaporator pressure during periods of low load. This hot gas bypass valve (HGBV) features an adjustable range of 0 to 80 PSIG, allowing technicians to fine-tune system performance and prevent compressor short-cycling. With 1/2" ODF solder connections, this valve integrates seamlessly into standard refrigeration and air conditioning circuits. The ADRS-2 is designed to modulate compressor capacity by bypassing hot discharge gas directly into the low side of the system, ensuring constant suction pressure and preventing evaporator icing. Built with a robust brass body and stainless steel internal components, it handles high-pressure differentials with minimal drift. This Sporlan ADRS series valve is a critical component for low-ambient operation and precise humidity control in commercial HVACR applications, offering reliable modulating capacity control for various refrigerant types including R-22, R-134a, and R-404A.
Key Technical Benefits- Precise Modulation: Provides accurate capacity control to match varying heat loads, ensuring stable saturated suction temperatures.
- Field Adjustable: The 0/80# range allows for specific setpoint calibration based on individual system requirements and operating pressures.
- System Longevity: Reduces mechanical wear on the compressor by eliminating frequent cycling under low-load conditions.
- Durable Construction: Features high-grade materials to resist corrosion and withstand high discharge temperatures.
- Standard Fitment: The 1/2" ODF connection simplifies installation and brazing procedures in the field.
How do I set the opening point on the ADRS-2?
The valve is adjusted by removing the cap and turning the adjustment screw. Increase the pressure setting by turning the screw clockwise; decrease it by turning counter-clockwise. Always verify settings with a calibrated manifold gauge set.
Where should the ADRS-2 be installed in the piping layout?
For optimal performance, the bypass should be installed in a branch line off the discharge line as close to the compressor as possible. The outlet should be piped to the suction line near the evaporator or into the side connection of a distributor.
Does this valve require an external equalizer?
The ADRS-2 is an internally equalized valve, making it ideal for standard systems where simplified piping is preferred without sacrificing pressure regulation accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
