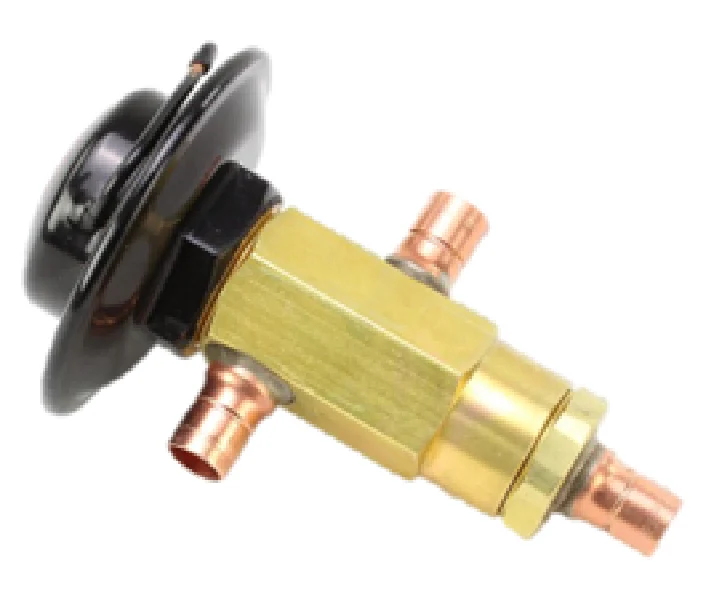

Sporlan 903030P Pressure Control
The Sporlan 903030P is a high-performance LAC-5-180 head pressure control valve designed for refrigeration and air conditioning systems that must operate efficiently during low ambient conditions. This Parker Sporlan low ambient control utilizes a non-adjustable, factory-set mechanism to maintain consistent liquid line pressure by modulating refrigerant flow. Specifically rated at 180 PSI, the 903030P forces discharge gas to bypass the condenser and enter the receiver directly, ensuring the expansion valve receives the necessary pressure to function correctly when outdoor temperatures drop. Built with a rugged brass body and 1/2" ODF solder connections, this valve supports a high design working pressure of 450 PSI. It eliminates the need for complex fan cycling or damper systems by providing a simplified, mechanical solution for head pressure control in split systems, grocery refrigeration, and industrial HVACR units.
Key Benefits for HVACR Contractors
- Stable System Performance: Prevents compressor short-cycling and evaporator freeze-ups by maintaining precise head pressure in low outdoor temperatures.
- Rugged Construction: Features a durable brass body and copper 1/2 inch ODF connections to resist corrosion and ensure leak-free operation.
- Reduced Installation Time: The factory-calibrated 180 PSI setting provides repeatable performance without requiring field adjustments.
- Component Protection: Limits refrigerant flow to the condenser to stabilize the high-side, extending the life of the compressor and expansion valves.
- High Pressure Capability: Engineered for reliability with a maximum design working pressure of 450 PSI.
Common Questions
What is the purpose of the 180 PSI setting on the LAC-5-180?
The 180 PSI setting is the factory-calibrated point at which the valve begins to modulate, ensuring the receiver pressure remains high enough to feed liquid refrigerant to the expansion device during cold weather operation.
Does the Sporlan 903030P include an internal strainer?
No, the 903030P is the "Less Strainer" (LS) configuration. For systems requiring extra protection against debris, an external filter-drier or strainer should be installed upstream in the liquid line.
Can this valve be used with high-pressure refrigerants?
The LAC-5-180 is rated for a design working pressure up to 450 PSI, making it compatible with various common refrigerants; however, always verify your specific system pressure requirements against the 180 PSI set point for proper application.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
