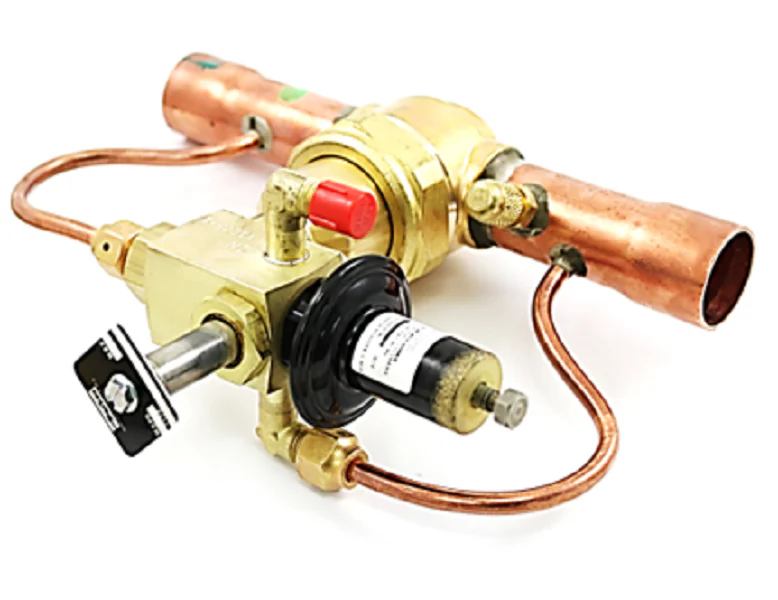

Sporlan 901611P Regulator
The Sporlan 901611P Regulator (Type SORIT-12) is a high-performance, pilot-operated evaporator pressure regulator designed for precise refrigeration pressure control. Featuring a 1-1/8" ODF solder connection and a 25/32" port, this valve effectively maintains a constant evaporator pressure regardless of fluctuations in load or suction header pressure. The SORIT-12 0/100 configuration provides an adjustable range of 0 to 100 PSIG, making it ideal for multi-evaporator systems where different temperature requirements share a common suction line. Utilizing high-side pilot pressure for operation, this EPR valve ensures minimal pressure drop across the primary port, optimizing system efficiency and preventing coil freeze-ups. Its normally open design facilitates rapid system evacuation without any manual operator, while the integral solenoid stop feature allows for positive shut-off during hot gas defrost cycles to prevent compressor overloading. Built with a durable brass body and extended copper connections, it is a reliable choice for supermarket racks and commercial walk-in applications.
Key Benefits- Precise Pressure Management: Maintains consistent evaporator temperature control to prevent product spoilage and frost buildup on air coils.
- Internal Solenoid Stop: Features a built-in solenoid to close the valve during defrost cycles, ensuring accurate pumpdown and protecting the compressor.
- High-Side Pilot Operation: Engineered to operate with a low manifold pressure differential, significantly improving energy efficiency compared to direct-acting regulators.
- Standard ODF Connections: Equipped with 1-1/8 inch ODF extended ends to simplify brazing and reduce the risk of internal component damage.
What is the primary difference between an ORIT and a SORIT regulator?
The SORIT model includes an integral solenoid "stop" feature, which allows the technician to close the valve electrically. This is essential for systems requiring a positive shut-off during defrost or pumpdown, whereas the standard ORIT only regulates based on inlet pressure.
Can this valve be used for liquid line applications?
No, the Sporlan 901611P is specifically designed as a suction line regulator. Using this pilot-operated valve in liquid lines can lead to improper modulation and potential damage to the high-side pilot supply connection.
Does the SORIT-12 require a pilot supply line?
Yes, since this is a pilot-operated valve, it requires a pilot supply connection from the compressor discharge (high side) to provide the necessary operating power for the internal piston.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
