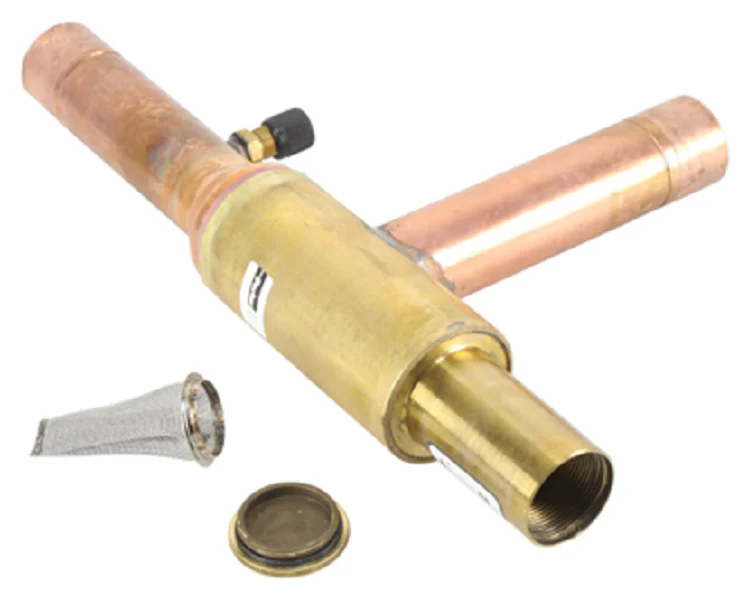

Sporlan 901138P Valve
As a seasoned technician, you know that maintaining precise evaporator temperature is a non-negotiable for system stability. The Sporlan 901138P, specifically the ORIT-10-0/50 model, is a direct acting evaporator pressure regulating valve designed to provide exceptional control in refrigeration and air conditioning circuits. This valve features a 1-1/8" ODF solder connection and is constructed with a robust brass body and hermetic, gasketless design to prevent refrigerant leaks.
The ORIT-10 is engineered to open on a rise in inlet pressure, effectively balancing system capacity with the actual load. With an adjustment range of 0 to 50 PSIG, it allows you to set a minimum evaporator pressure that prevents coil frosting during low-load periods, which is critical for walk-in coolers and display cases. The 1.218" port and integrated 40-mesh insertable strainer ensure high flow capacity and protection against debris, while the standard pressure tap makes on-site calibration straightforward for any contractor.
- Precise Pressure Regulation: Prevents evaporator pressure from dropping below the setpoint to eliminate coil icing.
- Hermetic Construction: All-copper and brass construction with no gaskets ensures long-term leak-free operation.
- Versatile Refrigerant Compatibility: Suitable for use with common refrigerants including R-22, R-134a, R-404A, and R-507.
- Internal Protection: Includes a factory-installed strainer to keep the seat clear of system contaminants.
Common Questions
How do I adjust the Sporlan ORIT-10 0-50 PSI valve?
To adjust the setting, remove the cap and turn the adjustment screw clockwise to increase the pressure setting or counter-clockwise to decrease it. Use the built-in pressure tap to verify the actual inlet pressure during the process.
What is the maximum working pressure for this EPR valve?
The Sporlan ORIT-10 is rated for a maximum working pressure of 500 PSIG, making it compatible with high-pressure systems while managing a precise 0-50 PSI evaporator range.
Can the ORIT-10 be used for head pressure control?
While the ORIT series is primarily used as an evaporator pressure regulator (EPR), certain configurations can be utilized in head pressure control applications when paired with a differential valve like the ORD. However, always verify your specific piping schematic before install.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
