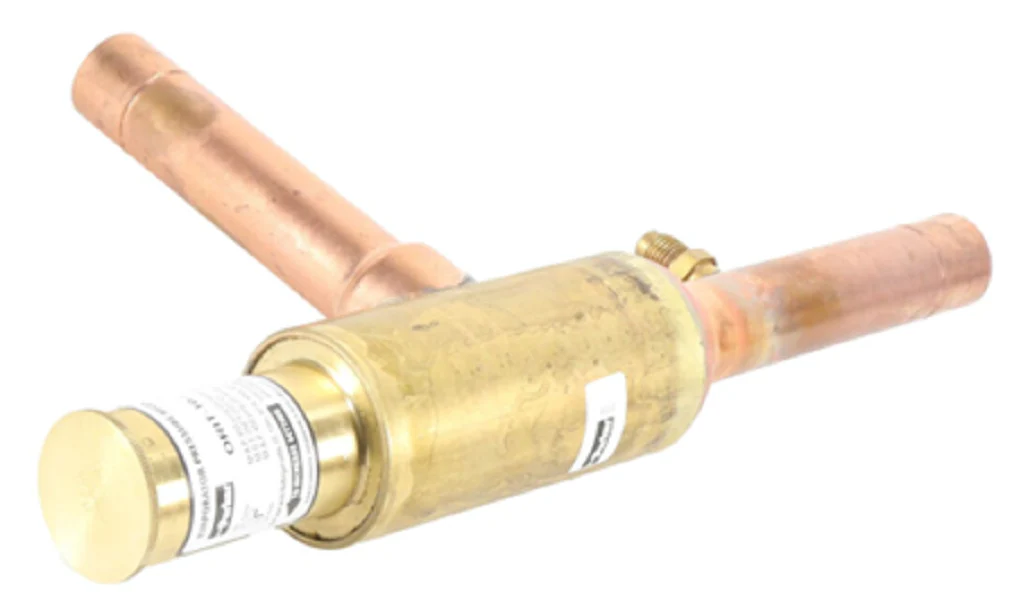

Sporlan 901131P Regulator
The Sporlan 901131P Regulator (Type ORIT-10) is a heavy-duty, direct-acting evaporator pressure regulating valve engineered for precise suction pressure management in commercial refrigeration systems. Designed with a 0/50 psi adjustment range and 7/8" ODF solder connections, this EPR valve prevents evaporator temperatures from dropping below a setpoint, effectively eliminating coil freeze-up and maintaining critical product temperatures in food merchandisers or water chillers. Its hermetic brass construction and extended copper connections ensure a leak-free lifecycle without the need for periodic gasket replacements. The integrated 40 mesh insertable strainer and inlet pressure tap allow for streamlined field diagnostics and system protection. By modulating based on inlet pressure rise, the ORIT-10 balances system capacity against varying load requirements, providing stable head pressure control and humidity management in multi-evaporator circuits sharing a common suction header for maximum efficiency.
Key Benefits:- Precise Pressure Regulation: Maintains a minimum evaporator pressure between 0 and 50 PSIG to protect against frosting and ensure consistent humidity levels.
- Contractor-Grade Durability: Features a corrosion-resistant brass body and a hermetically sealed design to prevent refrigerant leaks in demanding environments.
- Simplified Serviceability: Equipped with a standard inlet pressure tap for rapid gauge manifold connection and a 40-mesh strainer to capture system debris.
- High-Performance Compatibility: Standard 7/8" ODF connections allow for clean brazing into existing copper lines without the risk of internal seal damage.
- How do I adjust the pressure setting on the ORIT-10? Use the adjustment screw located under the cap; turning clockwise increases the pressure setting (raising the evaporator temperature), while counter-clockwise decreases it.
- Can this valve be used with modern refrigerants? Yes, the ORIT-10 is compatible with common high-pressure refrigerants like R-404A, R-507, and R-22, provided the operating pressures remain within the 450 PSI design limit.
- Does the valve require a specific mounting orientation? While it can be installed in various positions, it is best practice to install it in a horizontal line to prevent oil trapping and ensure optimal pilot response.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $733.42
-65%$733.42
$256.70Sporlan 901131P Regulator
The Sporlan 901131P Regulator (Type ORIT-10) is a heavy-duty, direct-acting evaporator pressure regulating valve engineered for precise suction pressure management in commercial refrigeration systems. Designed with a 0/50 psi adjustment range and 7/8" ODF solder connections, this EPR valve prevents evaporator temperatures from dropping below a setpoint, effectively eliminating coil freeze-up and maintaining critical product temperatures in food merchandisers or water chillers. Its hermetic brass construction and extended copper connections ensure a leak-free lifecycle without the need for periodic gasket replacements. The integrated 40 mesh insertable strainer and inlet pressure tap allow for streamlined field diagnostics and system protection. By modulating based on inlet pressure rise, the ORIT-10 balances system capacity against varying load requirements, providing stable head pressure control and humidity management in multi-evaporator circuits sharing a common suction header for maximum efficiency.
Key Benefits:- Precise Pressure Regulation: Maintains a minimum evaporator pressure between 0 and 50 PSIG to protect against frosting and ensure consistent humidity levels.
- Contractor-Grade Durability: Features a corrosion-resistant brass body and a hermetically sealed design to prevent refrigerant leaks in demanding environments.
- Simplified Serviceability: Equipped with a standard inlet pressure tap for rapid gauge manifold connection and a 40-mesh strainer to capture system debris.
- High-Performance Compatibility: Standard 7/8" ODF connections allow for clean brazing into existing copper lines without the risk of internal seal damage.
- How do I adjust the pressure setting on the ORIT-10? Use the adjustment screw located under the cap; turning clockwise increases the pressure setting (raising the evaporator temperature), while counter-clockwise decreases it.
- Can this valve be used with modern refrigerants? Yes, the ORIT-10 is compatible with common high-pressure refrigerants like R-404A, R-507, and R-22, provided the operating pressures remain within the 450 PSI design limit.
- Does the valve require a specific mounting orientation? While it can be installed in various positions, it is best practice to install it in a horizontal line to prevent oil trapping and ensure optimal pilot response.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
